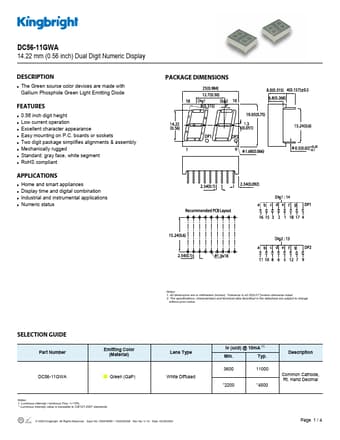

DC56-11GWA Datasheet, display equivalent, Kingbright

DC56-11GWA Features

• Display 0.56 inch digit height Low current operation Excellent character appearance Easy mounting on P.C. boards or sockets Two digit package simplifies alignments & assembly Mechanically rugge

PDF File Details

Part number:

DC56-11GWA

Manufacturer:

Kingbright

File Size:

567.44kb

Download:

📄 Datasheet

Description:

Dual digit numeric display. The Green source color devices are made with Gallium Phosphide Green Light Emitting Diode FEATURES 0.56 inch digit height Low current

DC56-11GWA Application

• Applications Home and smart appliances Display time and digital combination Industrial and instrumental applications Numeric status PACKAGE DIMENSI
