KPT-2012SECK, SMD Chip LED Lamp

KPT-2012SECK 2.0 x 1.25 mm SMD Chip LED Lamp .
The Super Bright Orange device is made with AlGaInP (on GaAs substrate) light emitting diode chip. Electrostatic discharge and power surge.

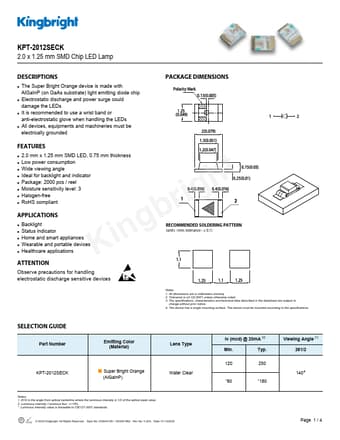

datasheet Preview Page 1 from Datasheet4u.com

KPT-2012SECK-Kingbright.pdf

KPT-2012SECK Datasheet Preview — Preview of KPT-2012SECK PDF

Datasheet Details

Part number:

KPT-2012SECK

Manufacturer:

Kingbright

File Size:

615.68 KB

Description:

SMD Chip LED Lamp

Features

* Kingbright
* 2.0 mm x 1.25 mm SMD LED, 0.75 mm thickness
* Low power consumption
* Wide viewing angle
* Ideal for backlight and indicator
* Package: 2000 pcs / reel
* Moisture sensitivity level: 3
* Halogen-free

Applications

* Backlight
* Status indicator
* Home and smart appliances
* Wearable and portable devices
* Healthcare applications RECOMMENDED SOLDERING PATTERN (units : mm; tolerance : ± 0.1) ATTENTION Observe precautions for handling electrostatic discharge sensitive devices Notes: 1. Al
