L-53MBC - SOLID STATE LAMP

Datasheet Summary

Description

The Blue source color devices are made with GaN on SiC Light Emitting Diode.

Static electricity and surge damage the LEDS.

It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs.

Features

  • LOW POWER.

📥 Download Datasheet

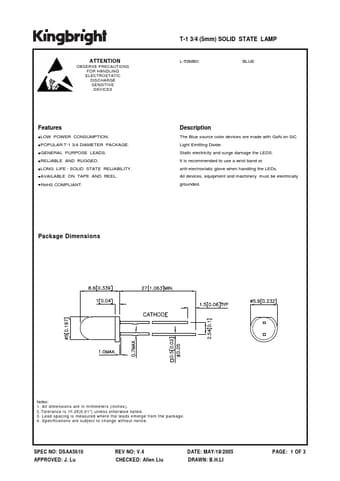

Datasheet preview – L-53MBC

Datasheet Details

Part number L-53MBC
Manufacturer Kingbright
File Size 78.61 KB
Description SOLID STATE LAMP
Datasheet download datasheet L-53MBC Datasheet
Additional preview pages of the L-53MBC datasheet.

📁 Similar Datasheet

  • L-53SYC - T-1 3/4 (5mm) SOLID STATE LAMP (Kingbright Corporation)
  • L-5013UWC - Ultra Brightness White LED (ETC)
  • L-5013WC - Ultra Brightness White LED (ETC)
  • L-5023UWC - Ultra Brightness White LED (ETC)
  • L-51ROPT1D1 - Receiver Module (Para Light Electronics)
Other Datasheets by Kingbright

Full PDF Text Transcription

Click to expand full text
ATTENTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC DISCHARGE SENSITIVE DEVICES Features LOW POWER CONSUMPTION. POPULAR T-1 3/4 DIAMETER PACKAGE. GENERAL PURPOSE LEADS. RELIABLE AND RUGGED. LONG LIFE - SOLID STATE RELIABILITY. AVAILABLE ON TAPE AND REEL. RoHS COMPLIANT. T-1 3/4 (5mm) SOLID STATE LAMP L-53MBC BLUE Description The Blue source color devices are made with GaN on SiC Light Emitting Diode. Static electricity and surge damage the LEDS. It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs. All devices, equipment and machinery must be electrically grounded. Package Dimensions Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3.
