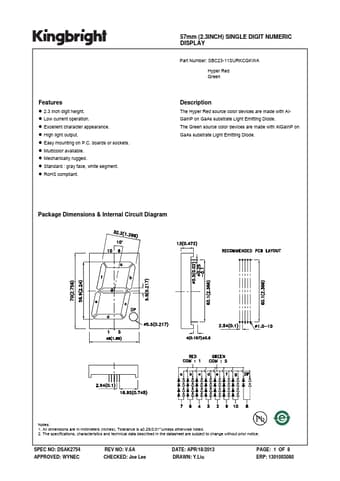

Features z 2.3 inch digit height. z Low current operation. z Excellent character appearance. z High light output. z Easy mounting on P.C. boards or sockets. z Multicolor available. z Mechanically rugged. z Standard : gray face, white segment. z Ro HS pliant. 57mm (2.3INCH) SINGLE DIGIT NUMERIC DISPLAY Part Number: SBC23-11SURKCGKWA Hyper Red Green Description The Hyper Red source color devices are made with Al Ga In P on Ga As substrate Light Emitting Diode. The Green source color devices are made with Al Ga In P on Ga As substrate Light Emitting Diode. Package Dimensions & Internal Circuit Diagram Notes: 1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted. 2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice. SPEC NO: DSAK2754 APPROVED: WYNEC REV NO: V.6A CHECKED: Joe Lee DATE: APR/18/2013 DRAWN: Y.Liu PAGE: 1 OF 8 ERP: 1301003080 Selection Guide Part No. Dice Lens Type Hyper Red (Al Ga In P) Green (Al Ga In P) White Diffused Note: 1. Luminous intensity/ luminous Flux: +/-15%. - Luminous intensity value is traceable to the CIE127-2007 pliant national standards Iv (ucd) [1] @ 10m A Min. Typ. Description 255000 440000 - 52000 88000 - 120000 mon Cathode. 200000 Rt. Hand Decimal - 31000 - 62000 Electrical / Optical Characteristics at...
