WP1043ID - Single Chip LED Light-Bar

WP1043ID Description

WP1043ID 3.65 x 6.15 mm Single Chip LED Light Bar .
The High Efficiency Red source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Orange Light Emitting Diode FEATURES Flat r.

WP1043ID Applications

* Status indicator Illuminator Signage applications Decorative and entertainment lighting Commercial and residential architectural lighting PACKAGE DIMENSIONS Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Lead spacing is measured where t

📥 Download Datasheet

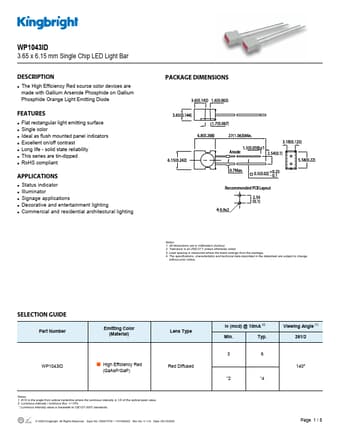

Preview of WP1043ID PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
WP1043ID
Manufacturer
Kingbright
File Size
598.44 KB
Datasheet
WP1043ID-Kingbright.pdf
Description
Single Chip LED Light-Bar
