KSSG1203-16 Magnetic Buzzer

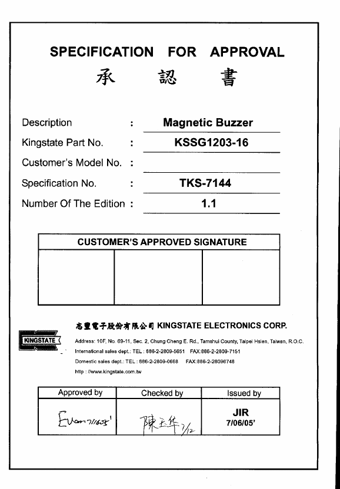

A.SCOPE This specification applies magnetic buzzer, KSSG1203-16 KSSG1203-16 B. SPECIFICATION No. Item 1 Rated Voltage 2 Operating Volt. 3 Mean Current Unit Vo-p Vo-p mA Specification 3.5 3.0~5.0 Max. 70 Vo-p Condition 0V Applying rated voltage,2048Hz square wave, 1/2duty 4 Coil Resistance 5 Sound Output dBA 16.0 ± 2.4 Min.85 (Typical 91) Distance at 10cm(A-weight free air). Applying rated voltage 2048Hz,square wave, 1/2duty 6 Rated Frequency Hz 7 Operating Temp. 8 Storage Temp. 9 .
