KVR667D2N5-1G
DESCRIPTION
This document describes Value RAM’s 128M x 64-bit 1GB (1024MB) DDR2-667 CL5 SDRAM (Synchronous DRAM) memory module. The ponents on this module include eight 128M x 8-bit DDR2-667 SDRAM in FBGA packages. This 240pin DIMM uses gold contact fingers and requires +1.8V. The electrical and mechanical specifications are as follows:
SPECIFICATIONS
Clock Cycle Time (t CK) CL=5 Row Cycle Time (t RC) Refresh to Active/Refresh mand Time (t RFC) Row Active Time (t RAS) Single Power Supply of Power UL Rating
3ns (min.) / 8ns (max.) 60ns (min.) 127.5ns
45ns (min.) / 70,000ns (max.) +1.8V (+/- .1V) 1.225 W (operating) 94 V
- 0
Note: The module defined in this data sheet is one of several configurations available under this part number. While all configurations are patible, the DRAM bination and/or the module height may vary from what is described here.

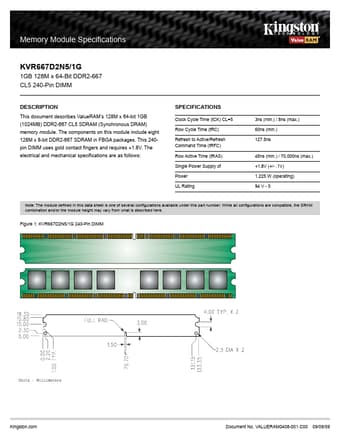

Figure 1: KVR667D2N5/1G 240-Pin DIMM
Units : Millimeters
Kingston.
Document No. VALUERAM0408-001.C00...
