1N4936, 1N4933 - FAST RECOVERY RECTIFIERS

1N4936 Description

1N4933 THRU 1N4937 FAST RECOVERY RECTIFIERS REVERSE VOLATAGE 50 to 600 Volts FORWARD CURRENT 1.0 Ampere .

1N4936 Features

* DO-41 The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Fast switching for high efficiency Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 ℃/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension MECHAN

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4936, 1N4933. Please refer to the document for exact specifications by model.

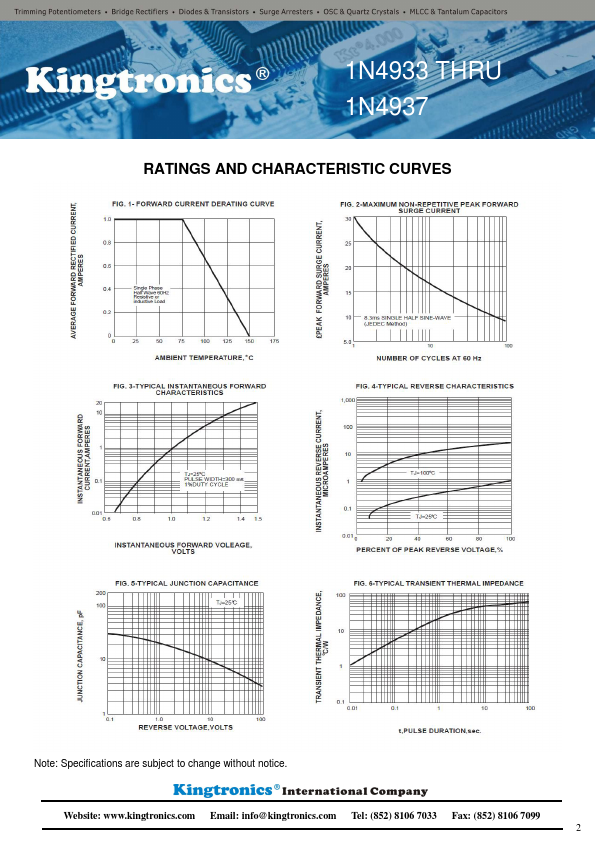

datasheet Preview Page 2

Datasheet Details

Part number
1N4936, 1N4933
Manufacturer
Kingtronics
File Size
335.64 KB
Datasheet
1N4933-Kingtronics.pdf
Description
FAST RECOVERY RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: 1N4936, 1N4933.
Please refer to the document for exact specifications by model.
