1N5818, 1N5817 - PLASTIC SCHOTTKY BARRIER RECTIFIER

1N5818 Description

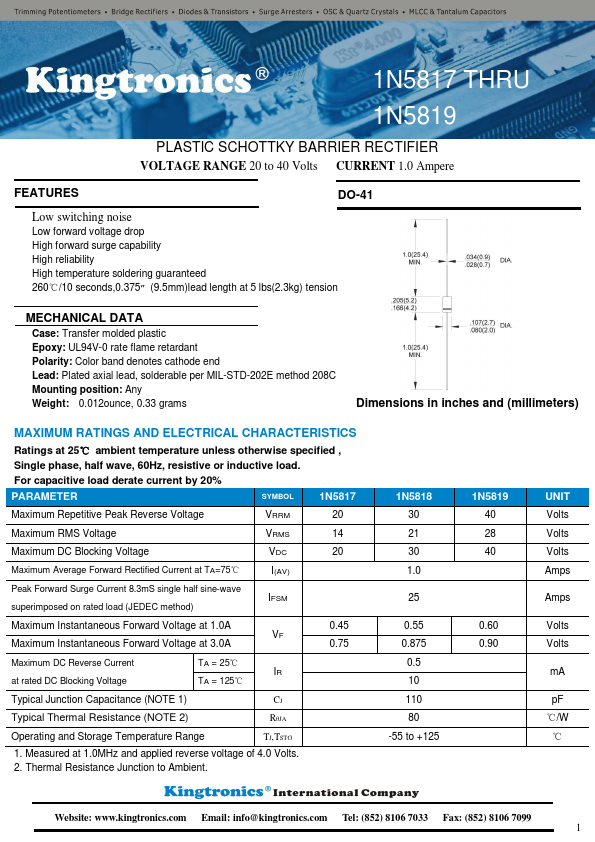

1N5817 THRU 1N5819 PLASTIC SCHOTTKY BARRIER RECTIFIER VOLTAGE RANGE 20 to 40 Volts CURRENT 1.0 Ampere .

1N5818 Features

* DO-41 Low switching noise Low forward voltage drop High forward surge capability High reliability High temperature soldering guaranteed 260℃/10 seconds,0.375”(9.5mm)lead length at 5 lbs(2.3kg) tension MECHANICAL DATA Case: Transfer molded plastic Epoxy: UL94V-0 rate flame retardant Polarity: Colo

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5818, 1N5817. Please refer to the document for exact specifications by model.

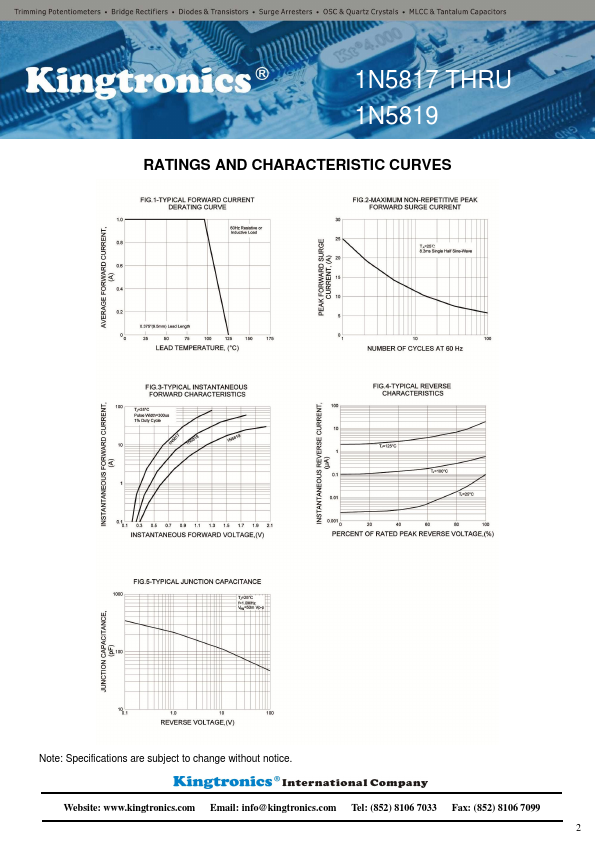

datasheet Preview Page 2

Datasheet Details

Part number
1N5818, 1N5817
Manufacturer
Kingtronics
File Size
424.61 KB
Datasheet
1N5817-Kingtronics.pdf
Description
PLASTIC SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: 1N5818, 1N5817.
Please refer to the document for exact specifications by model.
