6A1 General Purpose Plastic Rectifier

6A1 Description

6A05 THRU 6A10 General Purpose Plastic Rectifier REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 6.0 Ampere .

6A1 Features

* DO-201AD(DO-27) Low forward voltage drop Low leakage current High forward surge capability High temperature soldering guaranteed 260℃/10 seconds,0.375”(9.5mm)lead length at 5 lbs(2.3kg) tension MECHANICAL DATA Case: Transfer molded plastic Epoxy: UL94V-0 rate flame retardant Polarity: Color band

📥 Download Datasheet

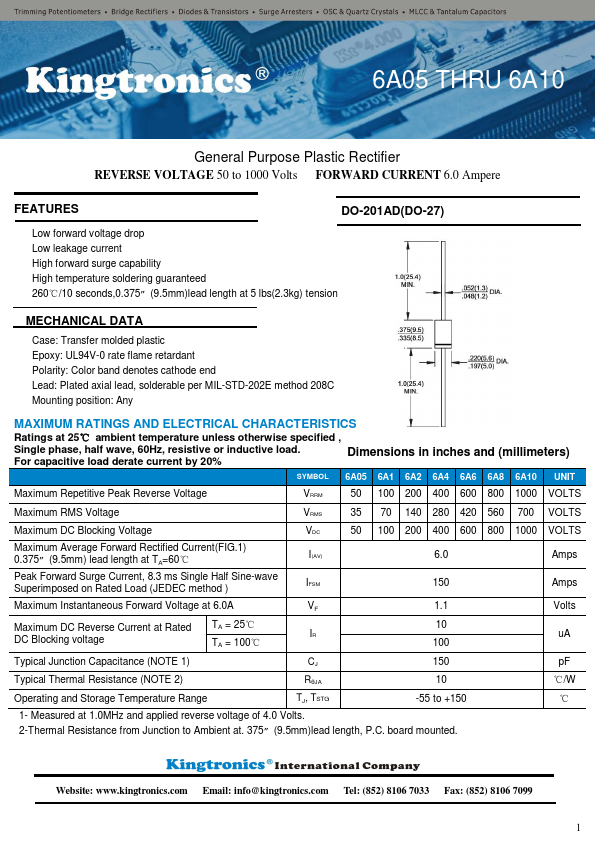

Preview of 6A1 PDF

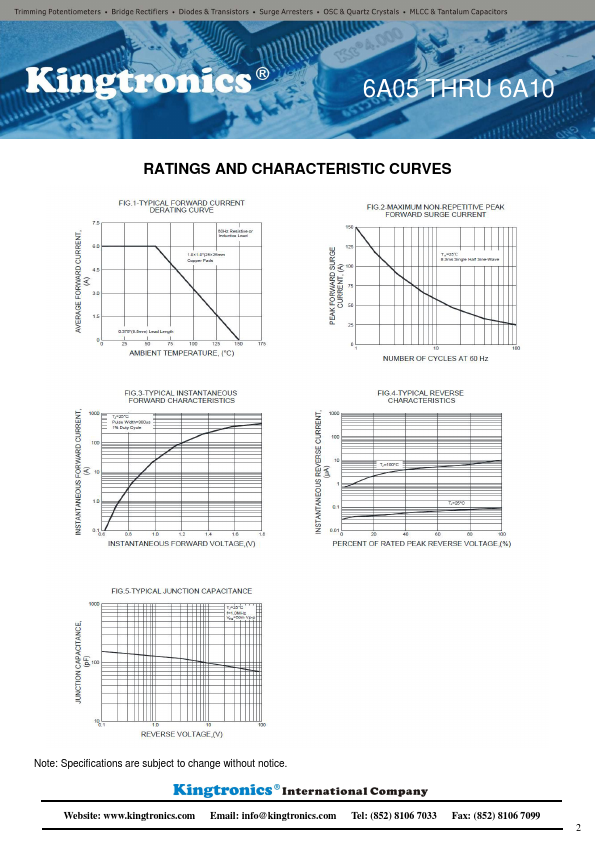

datasheet Preview Page 2

Datasheet Details

Part number
6A1
Manufacturer
Kingtronics
File Size
288.89 KB
Datasheet
6A1-Kingtronics.pdf
Description
General Purpose Plastic Rectifier
