Part number:
6A2
Manufacturer:
Kingtronics
File Size:
288.89 KB
Description:
General purpose plastic rectifier.

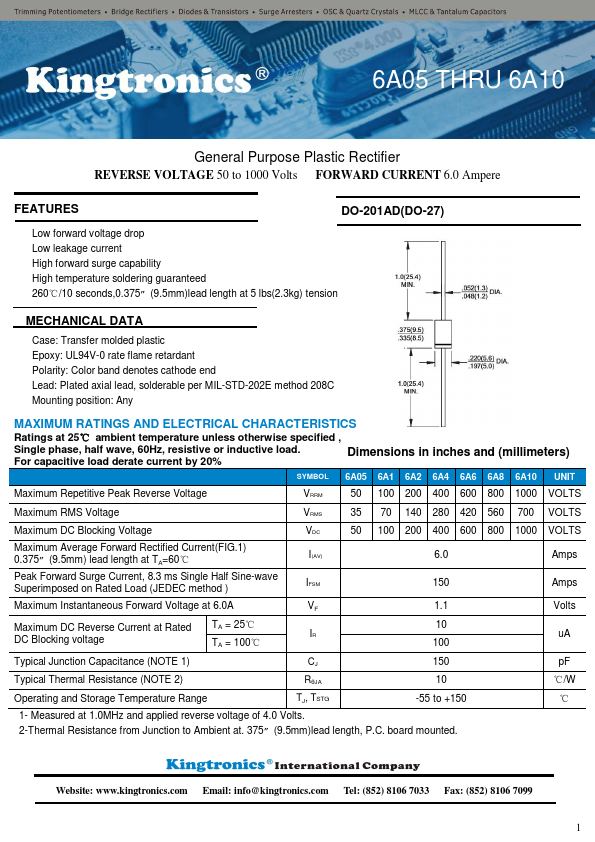

* DO-201AD(DO-27) Low forward voltage drop Low leakage current High forward surge capability High temperature soldering guaranteed 260℃/10 seconds,0.375”(9.5mm)lead length at 5 lbs(2.3kg) tension MECHANICAL DATA Case: Transfer molded plastic Epoxy: UL94V-0 rate flame retardant Polarity: Color band
6A2
Kingtronics
288.89 KB
General purpose plastic rectifier.
