DB104, DB101 SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER

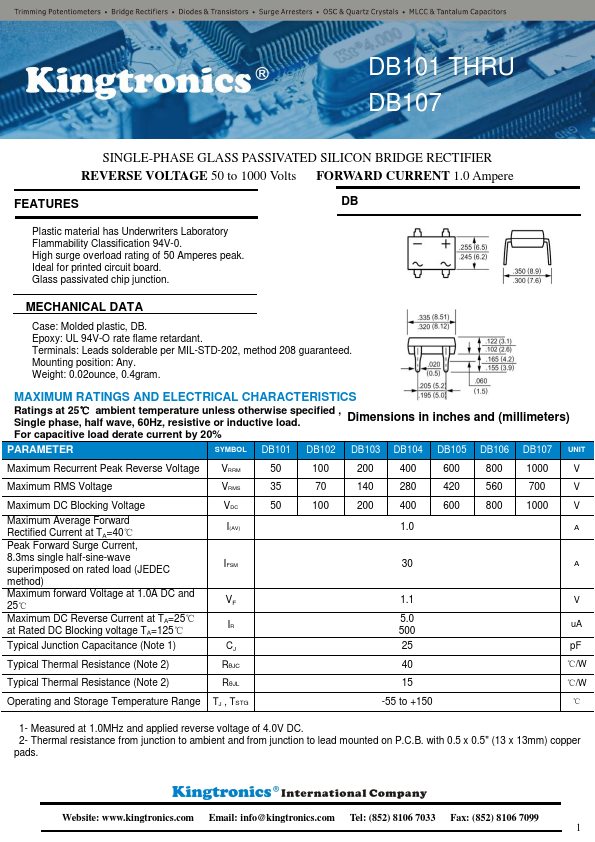

📥 Download Datasheet Datasheet Preview Page 1

Description

DB101 THRU DB107 SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 1.0 Ampere .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DB104, DB101. Please refer to the document for exact specifications by model.

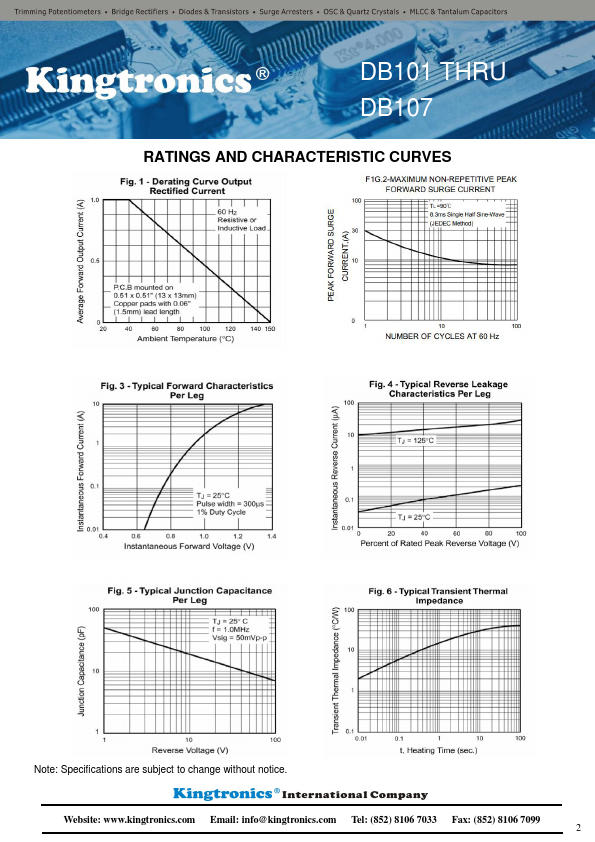

datasheet Preview Page 2

Datasheet Specifications

Part number
DB104, DB101
Manufacturer
Kingtronics
File Size
359.12 KB
Datasheet
DB101-Kingtronics.pdf
Description
SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: DB104, DB101.
Please refer to the document for exact specifications by model.

Features

* DB Plastic material has Underwriters Laboratory Flammability Classification 94V-0. High surge overload rating of 50 Amperes peak. Ideal for printed circuit board. Glass passivated chip junction. MECHANICAL DATA Case: Molded plastic, DB. Epoxy: UL 94V-O rate flame retardant. Terminals: Leads solde
