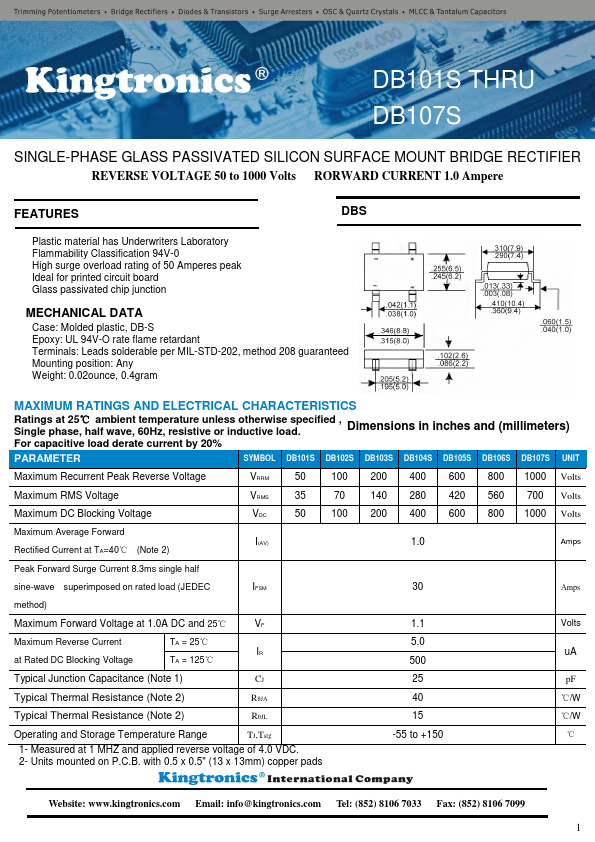

DB104S
FEATURES
Plastic material has Underwriters Laboratory Flammability Classification 94V-0 High surge overload rating of 50 Amperes peak Ideal for printed circuit board Glass passivated chip junction
MECHANICAL DATA
Case: Molded plastic, DB-S Epoxy: UL 94V-O rate flame retardant Terminals: Leads solderable per MIL-STD-202, method 208 guaranteed Mounting position: Any Weight: 0.02ounce, 0.4gram

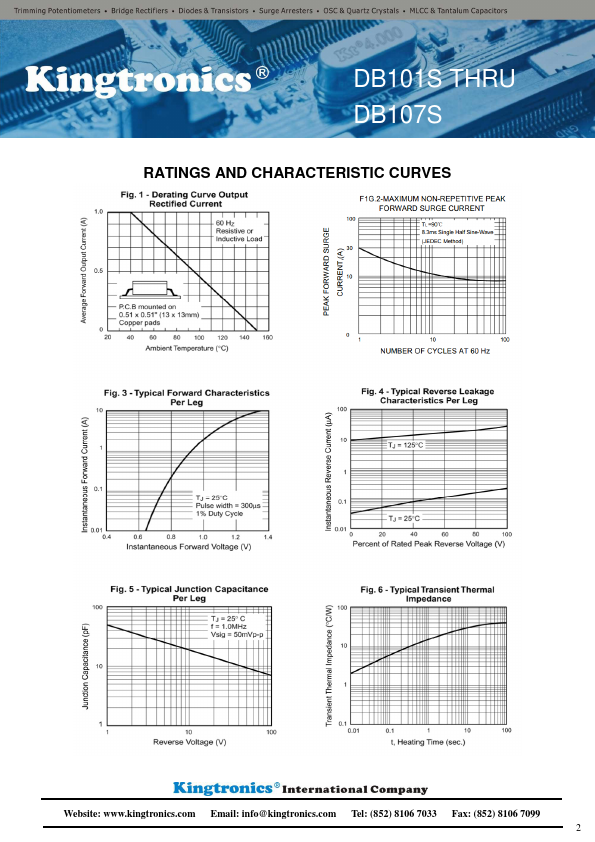

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25℃ ambient temperature unless otherwise specified , Single phase, half wave, 60Hz, resistive or inductive load.
Dimensions in inches and
(millimeters)
For capacitive load derate current by 20%
PARAMETER
SYMBOL DB101S DB102S DB103S DB104S DB105S DB106S DB107S UNIT
Maximum Recurrent Peak Reverse Voltage
VRRM
100 200 400 600 800 1000 Volts
Maximum RMS Voltage
VRMS
70 140 280 420 560 700 Volts
Maximum DC Blocking Voltage
50 100 200 400 600 800 1000 Volts
Maximum Average Forward I(AV)
Rectified Current at...
