FR107 - FAST RECOVERY RECTIFIERS

This page provides the datasheet information for the FR107, a member of the FR101 FAST RECOVERY RECTIFIERS family.

Datasheet Summary

Features

  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Fast switching for high efficiency Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 ℃/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension DO-41.

📥 Download Datasheet

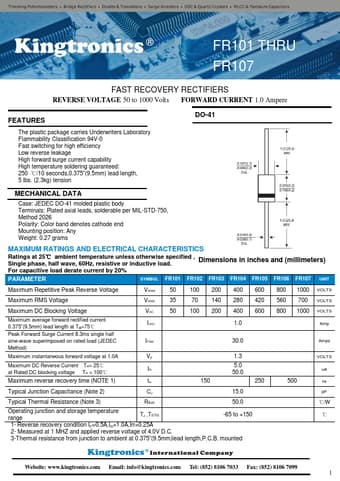

Datasheet preview – FR107

Datasheet Details

Part number FR107
Manufacturer Kingtronics
File Size 337.65 KB
Description FAST RECOVERY RECTIFIERS
Datasheet download datasheet FR107 Datasheet
Additional preview pages of the FR107 datasheet.

📁 Similar Datasheet

  • FR107 - 1.0A Fast Recovery Silicon Rectifier (SEP ELECTRONIC)
  • FR107 - 1.0A FAST RECOVERY DIODE (WON-TOP)
  • FR107 - FAST RECOVERY RECTIFIERS (Sangdest Microelectronics)
  • FR107 - FAST RECOVERY RECTIFIER DIODES (EIC)
  • FR107 - FAST RECOVERY RECTIFIER (Rectron)
  • FR107 - Fast Recovery Rectifier (Yangzhou Yangjie)
  • FR107 - Axial Leaded Fast Recovery Rectifiers (Formosa MS)
  • FR107 - FAST RECOVERY RECTIFIER (Mospec Semiconductor)
  • FR107 - Silicon Full Wave Rectifiers (Punjab Wireless Systems)
  • FR107 - 1.0A Fast Recovery Rectifier (TAITRON)
Other Datasheets by Kingtronics
  • FR101 - FAST RECOVERY RECTIFIERS
  • FR102 - FAST RECOVERY RECTIFIERS
  • FR103 - FAST RECOVERY RECTIFIERS
  • FR104 - FAST RECOVERY RECTIFIERS
  • FR105 - FAST RECOVERY RECTIFIERS
  • FR106 - FAST RECOVERY RECTIFIERS

Full PDF Text Transcription

Click to expand full text
FR101 THRU FR107 FAST RECOVERY RECTIFIERS REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 1.0 Ampere FEATURES The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Fast switching for high efficiency Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 ℃/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension DO-41 MECHANICAL DATA Case: JEDEC DO-41 molded plastic body Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting position: Any Weight: 0.27 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25℃ ambient temperature unless otherwise specified , Single phase, half wave, 60Hz, resistive or inductive load.
