Datasheet Specifications
- Part number
- GS2AA
- Manufacturer
- Kingtronics
- File Size
- 331.66 KB
- Datasheet
- GS2AA-Kingtronics.pdf
- Description
- SURFACE MOUNT GLASS PASSIVATED RECTIFIER
Description

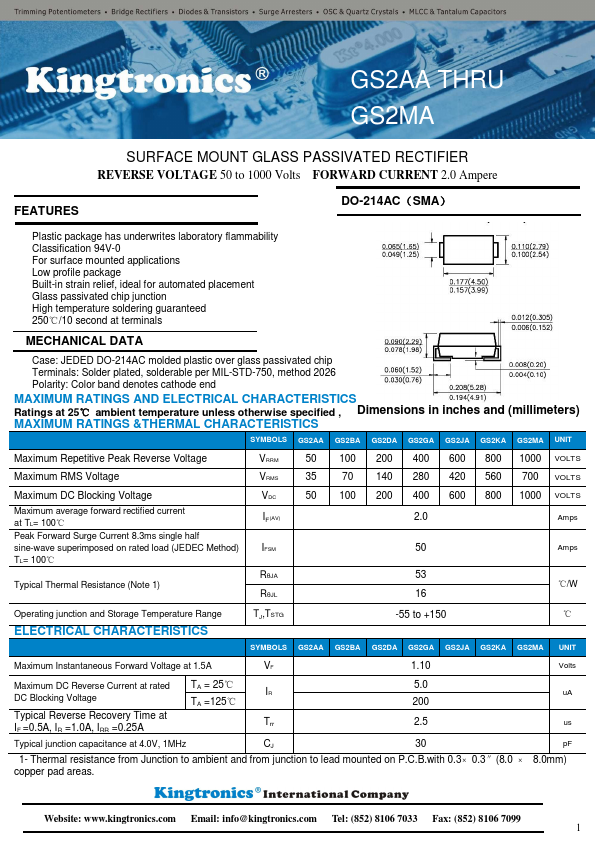

GS2AA THRU GS2MA SURFACE MOUNT GLASS PASSIVATED RECTIFIER REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 2.0 Ampere .
Applications
* Low profile package Built-in strain relief, ideal for automated placement Glass passivated chip junction High temperature soldering guaranteed 250℃/10 second at terminals MECHANICAL DATA Case: JEDED DO-214AC molded plastic over glass passivated chip Terminals: Solder plated, solderable per MIL-STDGS2AA Distributors
