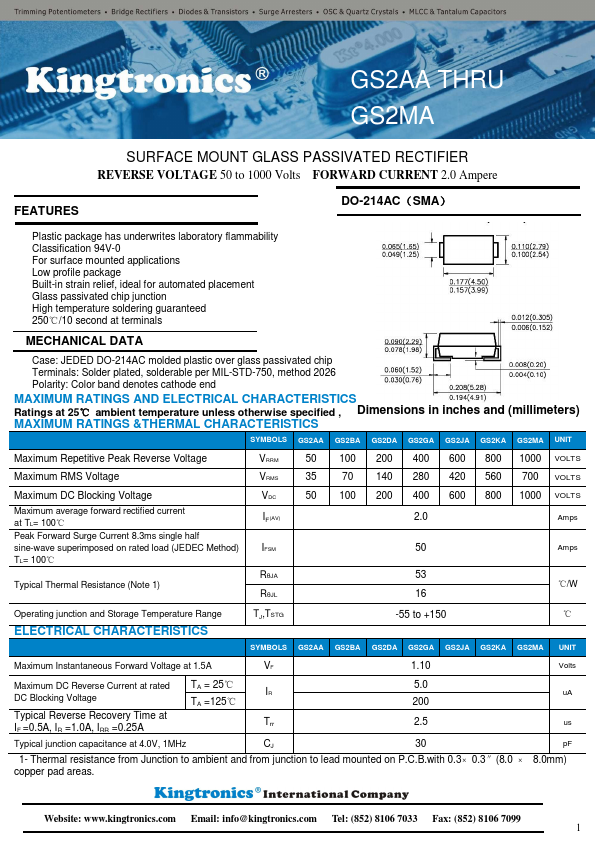

GS2GA
FEATURES
DO-214AC（SMA）
Plastic package has underwrites laboratory flammability Classification 94V-0 For surface mounted applications Low profile package Built-in strain relief, ideal for automated placement Glass passivated chip junction High temperature soldering guaranteed 250℃/10 second at terminals
MECHANICAL DATA
Case: JEDED DO-214AC molded plastic over glass passivated chip Terminals: Solder plated, solderable per MIL-STD-750, method 2026 Polarity: Color band denotes cathode end
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25℃ ambient temperature unless otherwise specified , Dimensions in inches and (millimeters) MAXIMUM RATINGS &THERMAL CHARACTERISTICS
SYMBOLS GS2AA GS2BA GS2DA GS2GA GS2JA GS2KA GS2MA UNIT
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage Maximum average forward rectified current at TL= 100℃ Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) TL= 100℃

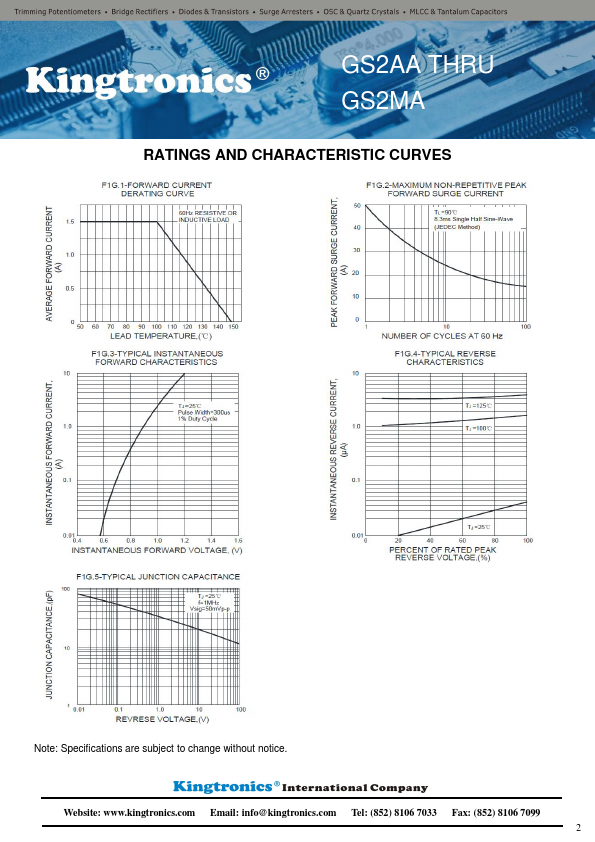

Typical...
