HER107 Features
* DO-41 Low forward voltage drop Low leakage current High forward surge capability High temperature soldering guaranteed 260℃/10 seconds,0.375”(9.5mm)lead length at 5 lbs(2.3kg) tension MECHANICAL DATA Case: Transfer molded plastic Epoxy: UL94V-0 rate flame retardant Polarity: Color band denotes
Datasheet Details

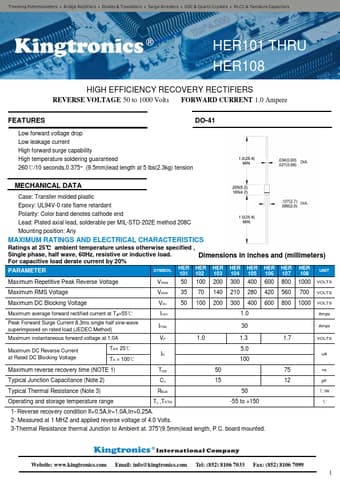

HER107, HER101
Kingtronics
344.46 KB
High efficiency recovery rectifiers.
This datasheet PDF includes multiple part numbers: HER107, HER101.
Please refer to the document for exact specifications by model.
