HER205, HER201 - HIGH EFFICIENCY RECTIFIERS

HER205 Description

HER201 THRU HER208 HIGH EFFICIENCY RECTIFIERS REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 2.0 Ampere .

HER205 Features

* DO-15 High speed switching Low forward voltage drop Low leakage current High forward surge capability High reliability High temperature soldering guaranteed 260℃/10 seconds,0.375”(9.5mm)lead length at 5 lbs(2.3kg) tension MECHANICAL DATA Case: Transfer molded plastic Epoxy: UL94V-0 rate flame ret

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HER205, HER201. Please refer to the document for exact specifications by model.

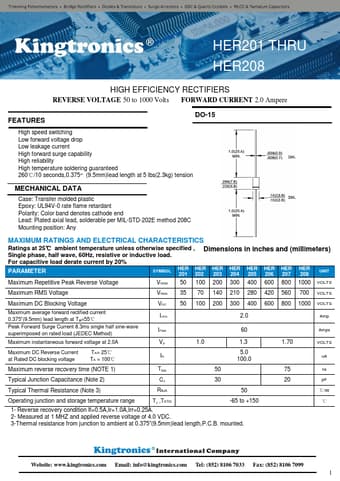

datasheet Preview Page 2

Datasheet Details

Part number
HER205, HER201
Manufacturer
Kingtronics
File Size
334.09 KB
Datasheet
HER201-kingtronics.pdf
Description
HIGH EFFICIENCY RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: HER205, HER201.
Please refer to the document for exact specifications by model.
