KBPC1002, KBPC10005 - SINGLE-PHASE GLASS PASSIVATED BRIDGE RECTIFIERS

KBPC1002 Description

KBPC10005 THRU KBPC1010 SINGLE-PHASE GLASS PASSIVATED BRIDGE RECTIFIERS REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 10.0 Ampere .

KBPC1002 Features

* BR-8 Rating to 1000V PRV Surge overload rating to 175 Amperes peak Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique results in inexpensive product Lead solderable per MIL-STD-202 method 208 Mounting: thru hole for # 6 screw Mounting MAXIMUM RATINGS

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KBPC1002, KBPC10005. Please refer to the document for exact specifications by model.

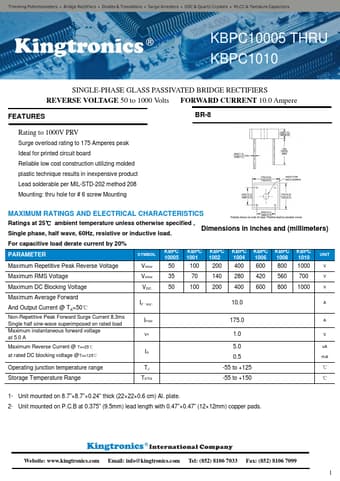

datasheet Preview Page 2

Datasheet Details

Part number
KBPC1002, KBPC10005
Manufacturer
Kingtronics
File Size
320.70 KB
Datasheet
KBPC10005-kingtronics.pdf
Description
SINGLE-PHASE GLASS PASSIVATED BRIDGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: KBPC1002, KBPC10005.
Please refer to the document for exact specifications by model.
