KKT310TR, KKT303TR - 3mm Ceramic Trimmer Capacitor SMD

Name: KKT310TR
SKU: KKT310TR-1576233

Kingtronics

The KKT310TR by Kingtronics is a 3mm Ceramic Trimmer Capacitor SMD. Below is the official datasheet preview.

Datasheet Details

Part number	KKT310TR, KKT303TR
Manufacturer	Kingtronics
File Size	1.00 MB
Description	3mm Ceramic Trimmer Capacitor SMD
Datasheet	KKT303TR-Kingtronics.pdf
Note	This datasheet PDF includes multiple part numbers: KKT310TR, KKT303TR. Please refer to the document for exact specifications by model.

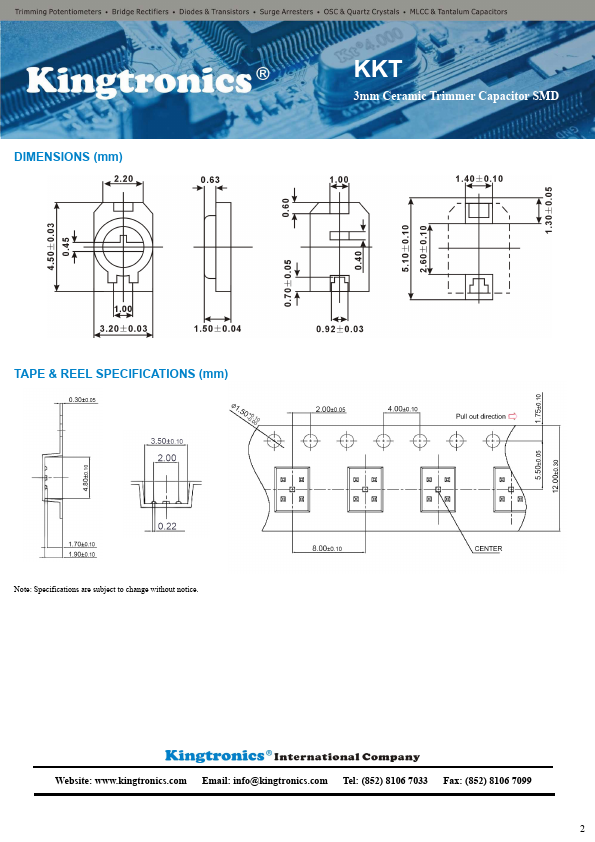

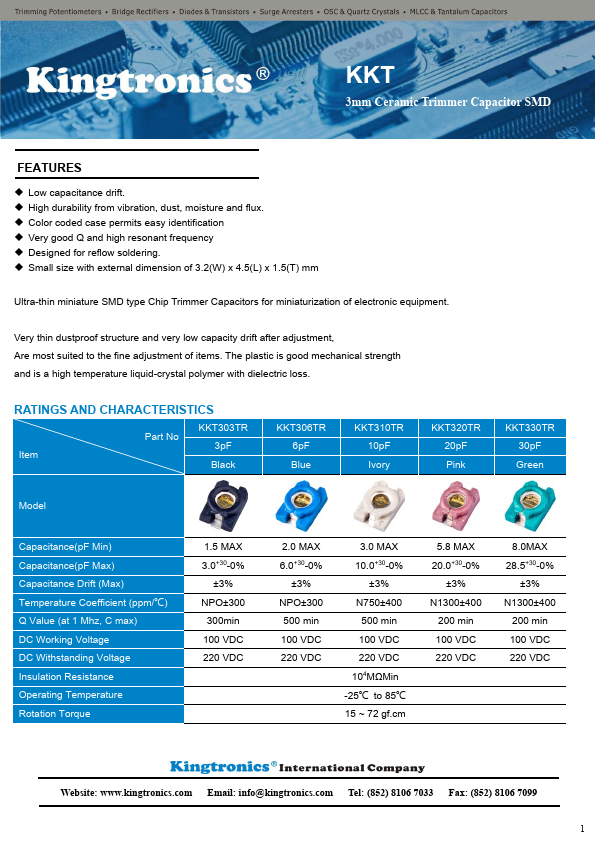

Additional preview pages of the KKT310TR datasheet.

Low capacitance drift.
High durability from vibration, dust, moisture and flux.
Color coded case permits easy identification.
Very good Q and high resonant frequency.
Designed for reflow soldering.
Small size with external dimension of 3.2(W) x 4.5(L) x 1.5(T) mm Ultra-thin miniature SMD type Chip Trimmer Capacitors for miniaturization of electronic equipment. Very thin dustproof structure and very low capacity drift after adjustment, Are most suited to the fi.
