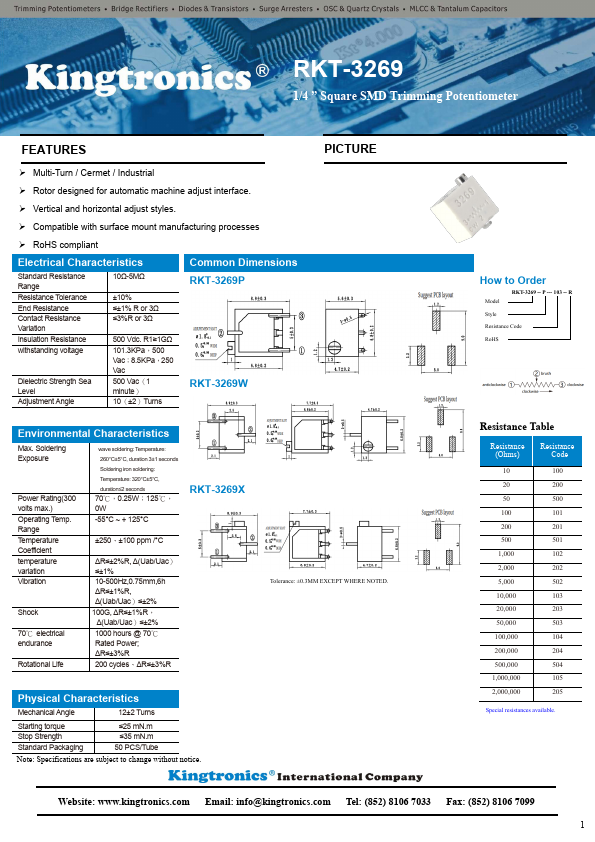

RKT-3269 - Square SMD Trimming Potentiometer

Kingtronics

Datasheet Details

Part number	RKT-3269
Manufacturer	Kingtronics
File Size	494.41 KB
Description	Square SMD Trimming Potentiometer
Datasheet	RKT-3269-Kingtronics.pdf

Multi-Turn / Cermet / Industrial.
Rotor designed for automatic machine adjust interface.
Vertical and horizontal adjust styles.
Compatible with surface mount manufacturing processes.
RoHS compliant Electrical Characteristics Standard Resistance Range Resistance Tolerance End Resistance Contact Resistance Variation Insulation Resistance withstanding voltage Dielectric Strength Sea Level Adjustment Angle 10Ω-5MΩ ±10% ≤±1% R or 3Ω ≤3%R or 3Ω 500 Vdc. R1≥1GΩ 101.3.
