RS5D, RS5A SURFACE MOUNT SUPER FAST RECTIFIER

📥 Download Datasheet Datasheet Preview Page 1

Description

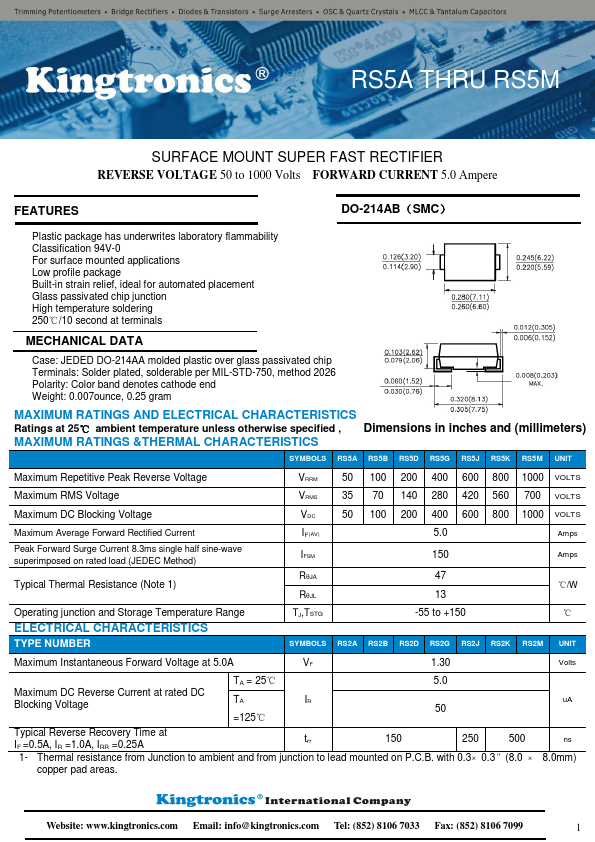

RS5A THRU RS5M SURFACE MOUNT SUPER FAST RECTIFIER REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 5.0 Ampere .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS5D, RS5A. Please refer to the document for exact specifications by model.

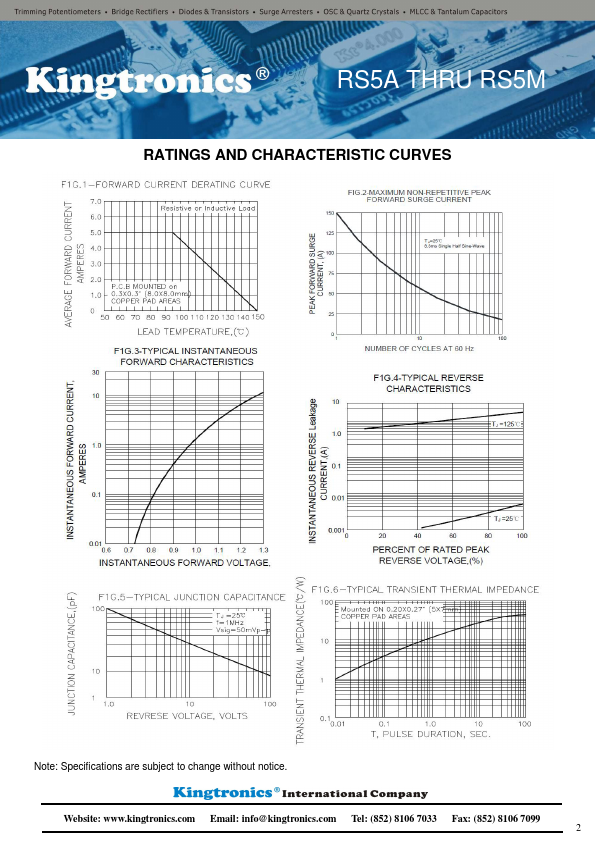

datasheet Preview Page 2

Datasheet Specifications

Part number
RS5D, RS5A
Manufacturer
Kingtronics
File Size
380.55 KB
Datasheet
RS5A-Kingtronics.pdf
Description
SURFACE MOUNT SUPER FAST RECTIFIER
Note
This datasheet PDF includes multiple part numbers: RS5D, RS5A.
Please refer to the document for exact specifications by model.

Applications

* Low profile package Built-in strain relief, ideal for automated placement Glass passivated chip junction High temperature soldering 250℃/10 second at terminals MECHANICAL DATA Case: JEDED DO-214AA molded plastic over glass passivated chip Terminals: Solder plated, solderable per MIL-STD-750, metho
