Part number:
WKTS1020040E
Manufacturer:
Kingtronics
File Size:
325.50 KB
Description:
Tact switches.
WKTS1020040E Datasheet (325.50 KB)
Datasheet Details
WKTS1020040E Features

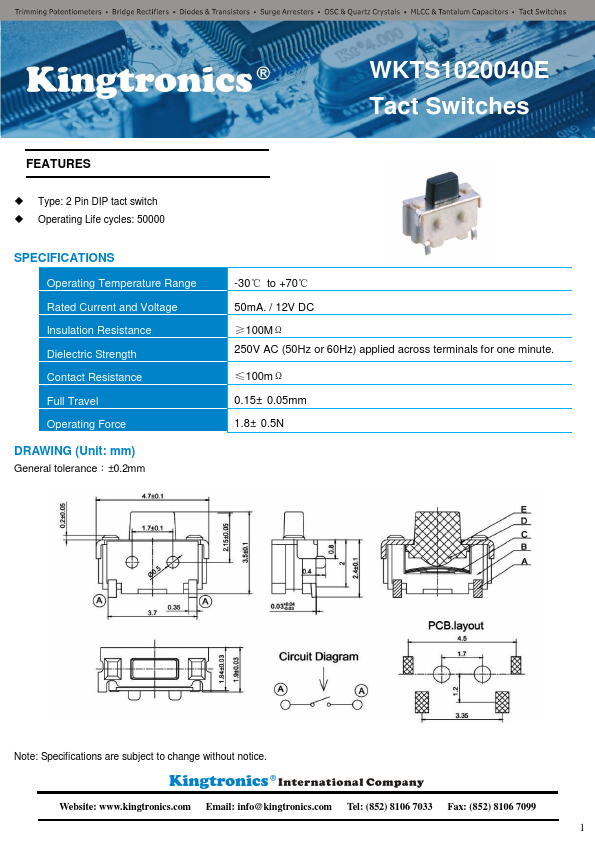

* u Type: 2 Pin DIP tact switch u Operating Life cycles: 50000 SPECIFICATIONS Operating Temperature Range Rated Current and Voltage Insulation Resistance Dielectric Strength Contact Resistance Full Travel Operating Force DRAWING (Unit: mm) General tolerance：±0.2mm -30℃ to +70℃ 50mA. / 12V DC ≥100MΩ 2
WKTS1020040E Datasheet (325.50 KB)
Datasheet Details
WKTS1020040E
Kingtronics
325.50 KB
Tact switches.
