KP1063C, KP1060C - Non-Isolated Buck APFC Offline LED Power Switch

KP1063C Description

KP1060C/KP1061C/KP1062C/KP1063C Non-Isolated Buck APFC Offline LED Power Switch .
KP106XC series are a highly integrated power switch with constant current (CC) control for LED lighting applications.

KP1063C Features

* Active PFC for High PF and Low THD
* PF>0.9 with Universal Input
* Built-in HV Startup and IC Power Supply Circuit
* Internal 500V Power MOSFET
* Quasi-Resonant for High Efficiency
* ±1% CC Regulation
* Very Low VDD Operation Current
* Excellent Line and Load Regula

KP1063C Applications

* LED Bulb Light/Ceiling Light

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KP1063C, KP1060C. Please refer to the document for exact specifications by model.

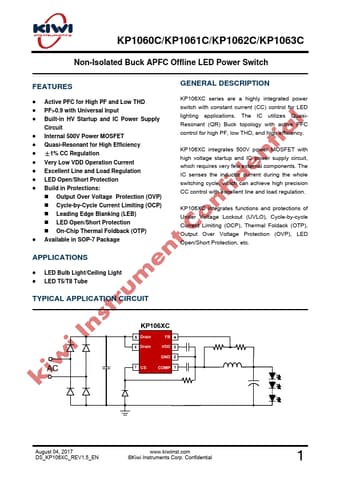

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KP1063C, KP1060C
Manufacturer
Kiwi Instruments
File Size
443.50 KB
Datasheet
KP1060C-KiwiInstruments.pdf
Description
Non-Isolated Buck APFC Offline LED Power Switch
Note
This datasheet PDF includes multiple part numbers: KP1063C, KP1060C.
Please refer to the document for exact specifications by model.
