SPK0415HM4H-B Datasheet - Knowles Electronics

SPK0415HM4H-B - Digital High-SNR SiSonic Microphone

Power Supply Lo/Hi (L/R) Select This pin is internally pulled low.

Clock Input PDM Output Ground Ground Ground Ground Notes: Pick Area only extends to 0.25 mm of any edge or hole unless otherwise specified.

Dimensions are in millimeters unless otherwise specified.

Tolerance is ±0.15mm unless otherw

SPK0415HM4H-B Digital High-SNR SiSonicTM Microphone The SPK0415HM4H-B is a miniature, highperformance, low power, top port silicon digital microphone with a single bit PDM output.

Using Knowles’ proven high performance SiSonicTM MEMS technology, the SPK0415HM4H-B consists of an acoustic sensor, a low noise input buffer, and a sigma-delta modulator.

These devices are suitable for applications such as cellphones, smart phones, laptop computers, sensors, digital still cameras, portable music recor

SPK0415HM4H-B Features

* Low Noise

* Low Current

* RF Shielded

* PDM Output

* Supports Dual Multiplexed Channels

* Ultra-Stable Performance

* Standard SMD Reflow

* Omnidirectional Revision: E Sheet 1 of 13 6/18/2013 ©2013 Knowles Electronics SPK0415HM4H-B

SPK0415HM4H-B-KnowlesElectronics.pdf

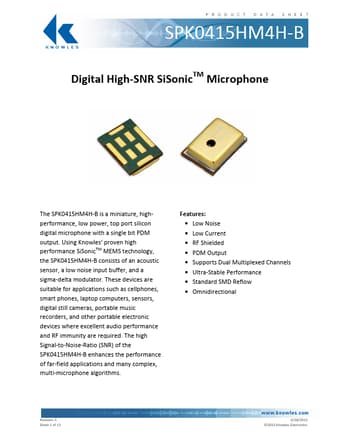

Preview of SPK0415HM4H-B PDF
SPK0415HM4H-B Datasheet Preview Page 2 SPK0415HM4H-B Datasheet Preview Page 3

Datasheet Details

Part number:

SPK0415HM4H-B

Manufacturer:

Knowles Electronics

File Size:

681.28 KB

Description:

Digital high-snr sisonic microphone.
