K510 Datasheet - Knox Semiconductor Inc

K510 LOW LEVEL ZENER DIODES VERY LOW VOLTAGE/ LOW LEAKAGE

LOW LEVEL ZENER DIODES VERY LOW VOLTAGE, LOW LEAKAGE K120 - K510 Conserves battery life Unique manufacturing process Provides lowest reverse leakage currents Low impedance at currents specified at 10 mA and below NOMINAL ZENER VOLTAGE Vz @ Iz = 10 mA (Vdc) 1.2 1.5 1.8 2.1 2.4 2.7 3.0 3.3 3.6 3.9 4.3 4.7 5.1 DYNAMIC IMPEDANCE MAX Zz MAX Zzk @ IZ = 10 mA @ IZ = 1 mA (OHMS) (OHMS) 20 125 20 125 20 125 20 125 20 125 20 125 20 125 20 125 20 125 20 125 25 135 25.

K510_KnoxSemiconductorInc.pdf

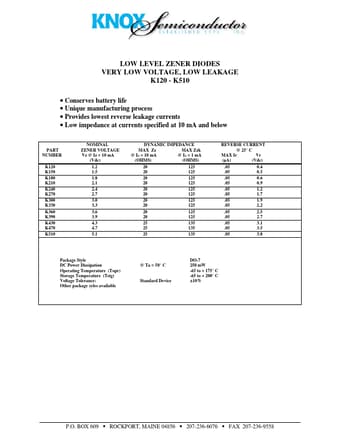

Preview of K510 PDF

Datasheet Details

Part number:

K510

Manufacturer:

Knox Semiconductor Inc

File Size:

34.54 KB

Description:

Low level zener diodes very low voltage/ low leakage.
