K681 Datasheet - Knox Semiconductor Inc

K681 LOW LEVEL ZENER DIODES SHARP KNEE/ LOW IMPEDANCE

LOW LEVEL ZENER DIODES SHARP KNEE, LOW IMPEDANCE K511 - K681 Unique manufacturing process Remarkably sharp breaking diodes Very low impedances at low current levels Lowest values of impedance ever achieved at the 250uA level NOMINAL ZENER VOLTAGE @ Iz = 250µA (Vdc) 5.1 5.6 6.2 6.8 DYNAMIC IMPEDANCE MAX Zz MAX Zzk @ Iz = 250 µA @ Iz = 1 mA (OHMS) (OHMS) 50 15 45 15 35 18 25 18 REVERSE CURRENT @ 25° C MAX Ir Vr (µA) (Vdc) .05 2.5 .05 3.5 .05 5.6 .05 6.4 PA.

K681 Datasheet (33.52 KB)

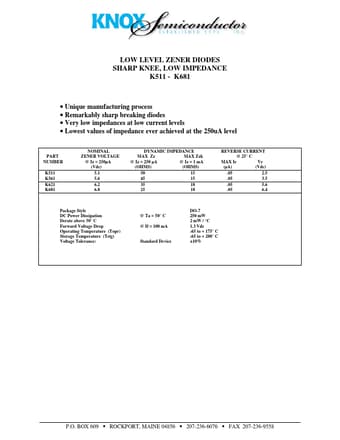

K681 Datasheet Preview — Preview of K681 PDF

Datasheet Details

Part number:

K681

Manufacturer:

Knox Semiconductor Inc

File Size:

33.52 KB

Description:

Low level zener diodes sharp knee/ low impedance.
