LV2302 VHF HYPERABRUPT TUNING DIODES

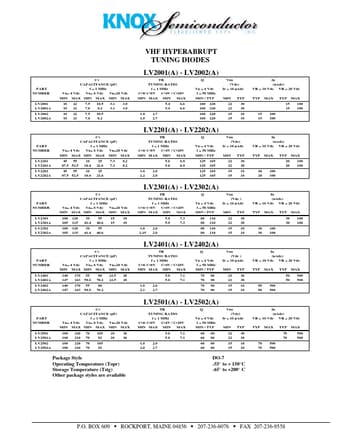

VHF HYPERABRUPT TUNING DIODES LV2001(A) - LV2002(A) PART NUMBER LV2001 LV2001A LV2002 LV2002A CT CAPACITANCE (pF) f = 1 MHz VR= 4 Vdc VR= 8 Vdc VR=20 Vdc MIN MAX MIN MAX MIN MAX 18 19 18 19 22 21 22 21 7.5 7.8 7.5 7.8 10.5 9.2 10.5 9.2 3.1 3.1 3.9 3.9 1.8 2.0 2.7 2.7 TR TUNING RATIO f = 1 MHz C 4/ C 8V C 4V / C 20V MIN MAX MIN MAX 5.4 5.4 6.6 6.6 Q VR = 4 Vdc f = 50 MHz MIN / TYP 160 160 160 160 220 220 220 220 VBR (Vdc) Ir = 10 µAdc MIN 22 22 15 15 TYP 30 30 18 1.

LV2302_KnoxSemiconductorInc.pdf

LV2302 Datasheet Preview — Preview of LV2302 PDF

Datasheet Details

Part number:

LV2302

Manufacturer:

Knox Semiconductor Inc

File Size:

39.60 KB

Description:

Vhf hyperabrupt tuning diodes.
