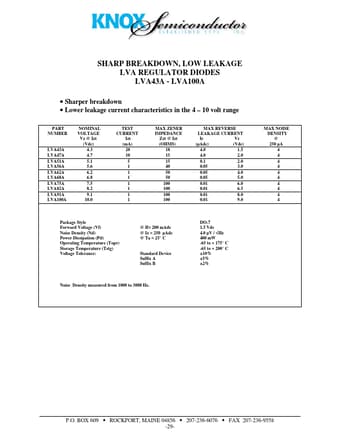

LVA100A - SHARP BREAKDOWN/ LOW LEAKAGE LVA REGULATOR DIODES
SHARP BREAKDOWN, LOW LEAKAGE LVA REGULATOR DIODES LVA43A - LVA100A Sharper breakdown Lower leakage current characteristics in the 4 10 volt range PART NUMBER NOMINAL VOLTAGE Vz @ Izt (Vdc) 4.3 4.7 5.1 5.6 6.2 6.8 7.5 8.2 9.1 10.0 TEST CURRENT Izt (mA) 20 10 5 1 1 1 1 1 1 1 MAX ZENER IMPEDANCE Zzt @ Izt (OHMS) 18 15 15 40 50 50 100 100 100 100 MAX REVERSE LEAKAGE CURRENT Ir Vr (µAdc) (Vdc) 4.0 1.5 4.0 2.0 0.1 2.0 0.05 3.0 0.05 4.0 0.05 5.0 0.01 6.0 0.01 6.5 0.01 8.0
