KSA240D2-24 - Solid State Relay

This page provides the datasheet information for the KSA240D2-24, a member of the KSA240D2-5 Solid State Relay family.

Description

The KSA series is printed board mounted AC output solid state relay.Small volume with high surge current ability.Sutible for control electromagnetic valve,electric machine,filament lamp etc.The control input voltage is 5VDC,12VDC and 24VDC.Opto-isolation bettween input and output,output is AC output

📥 Download Datasheet

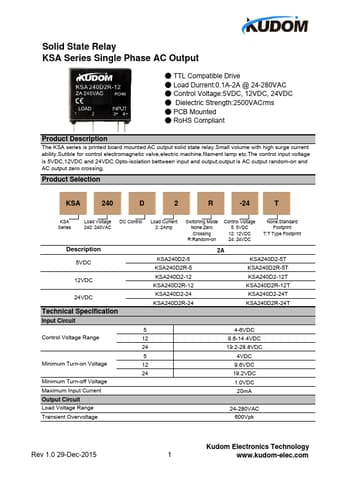

Datasheet preview – KSA240D2-24

Datasheet Details

Part number KSA240D2-24
Manufacturer Kudom
File Size 125.18 KB
Description Solid State Relay
Datasheet download datasheet KSA240D2-24 Datasheet
Additional preview pages of the KSA240D2-24 datasheet.

📁 Similar Datasheet

  • KSA240AC8 - Solid State Relay (COSMO Electronics Corporation)
  • KSA2015CAT - Single N-Channel Advanced Power MOSFET (Kwansemi)
  • KSA210AC8 - Solid State Relay (cosmo)
  • KSA215AC8 - Solid State Relay (cosmo)
  • KSA225AC8 - Solid State Relay (cosmo)
  • KSA2690 - Audio Frequency High Frequency Power Amplifier (Fairchild Semiconductor)
  • KSA0Axxx - Sealed Tact Switch (ITT Industries)
  • KSA0M211 - (KSA / KSL Series) Sealed Tact Switch (C&K Components)
  • KSA0M311 - (KSA / KSL Series) Sealed Tact Switch (C&K Components)
  • KSA0M411 - (KSA / KSL Series) Sealed Tact Switch (C&K Components)
Other Datasheets by Kudom

Full PDF Text Transcription

Click to expand full text
Solid State Relay KSA Series Single Phase AC Output ● TTL Compatible Drive ● Load Durrent:0.1A-2A @ 24-280VAC ● Control Voltage:5VDC, 12VDC, 24VDC ● Dielectric Strength:2500VACrms ● PCB Mounted ● RoHS Compliant Product Description The KSA series is printed board mounted AC output solid state relay.Small volume with high surge current ability.Sutible for control electromagnetic valve,electric machine,filament lamp etc.The control input voltage is 5VDC,12VDC and 24VDC.Opto-isolation bettween input and output,output is AC output random-on and AC output zero crossing.
