KSC2024FAP - Single N-Channel Advanced Power MOSFET

KSC2024FAP Description

.
G DS TO-220F D G Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25°C Unless Otherwise Noted) VDSS Drain-Source Voltage VGSS Gat.

KSC2024FAP Features

* 200V/14A, RDS (ON) =145mΩ(Typ. )@VGS=10V
* Low RDS (ON)
* Planar Technology
* Reliable and Rugged
* 100% Avalanche Tested

KSC2024FAP Applications

* Inverter

📥 Download Datasheet

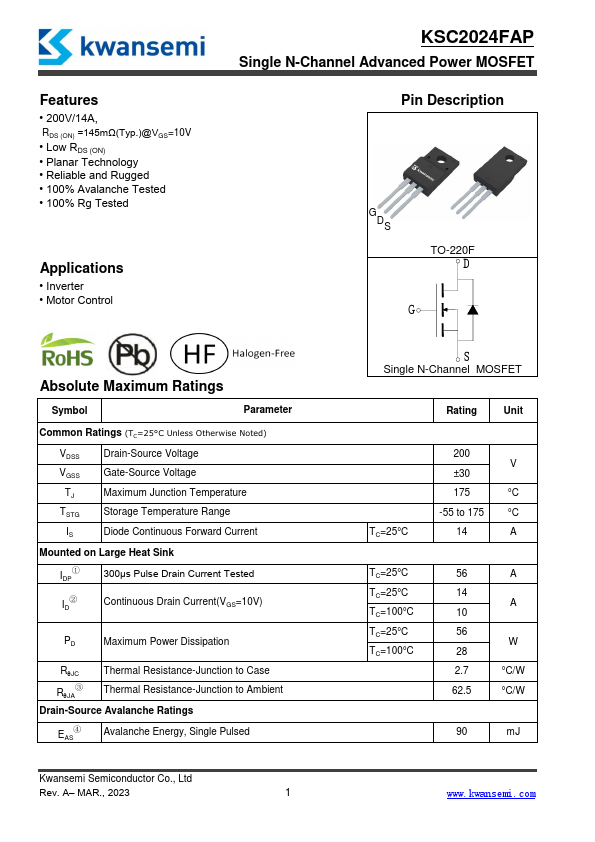

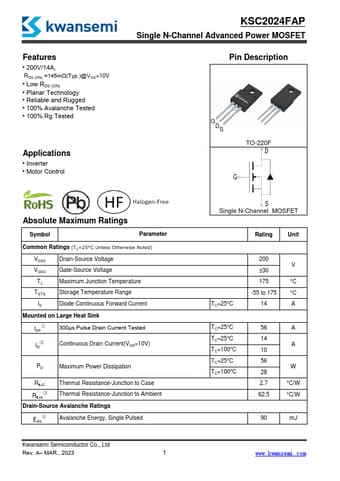

Preview of KSC2024FAP PDF

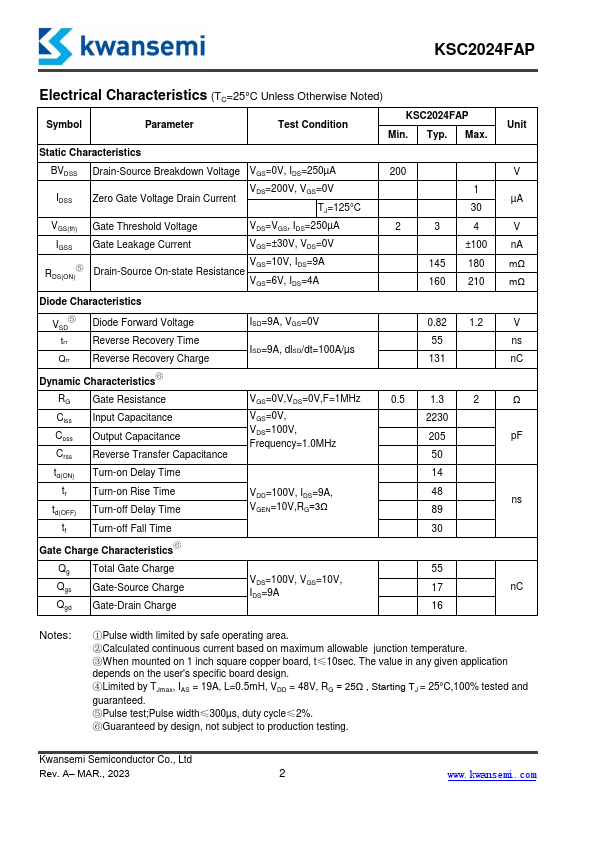

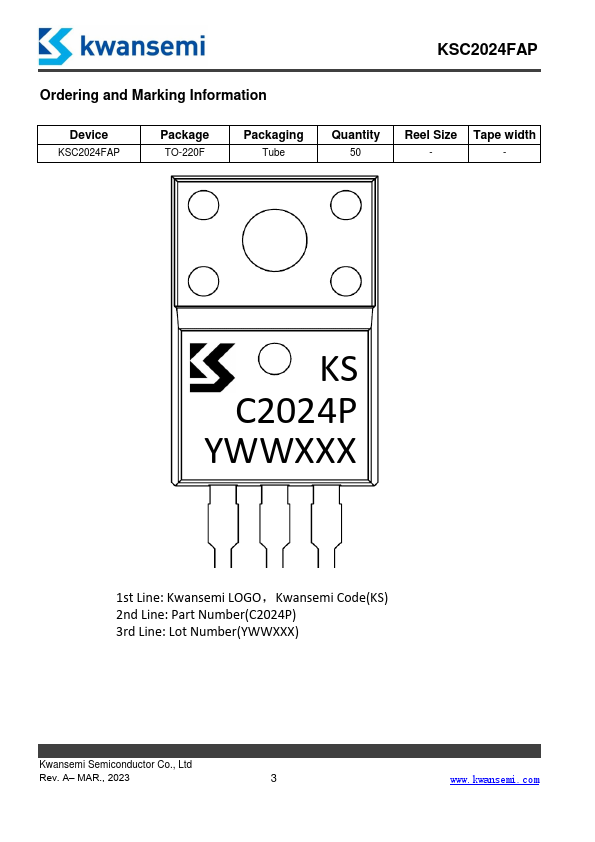

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KSC2024FAP
Manufacturer
Kwansemi
File Size
936.89 KB
Datasheet
KSC2024FAP-Kwansemi.pdf
Description
Single N-Channel Advanced Power MOSFET
