CX1255GB - Crystal Units

CX1255GB Description

Crystal Units Surface Mount Type CX1255GB (CX-5FD) 11.8×5.5mm for Consumer Products .

CX1255GB Features

* Crystal unit for Consumer Products
* Small and low profile (11.8×5.5×1.8mm)
* Ceramic package

CX1255GB Applications

* Digital Electronics
* Consumer Products
* Car audio and accessories RoHS Compliant Specifications Item Symbol Specification Frequency Range f_nom 3500 to 28999 Overtone Order OT Fundamental Load Capacitance CL 12 Frequency Stability f_tol ±50 Motional Series Res

📥 Download Datasheet

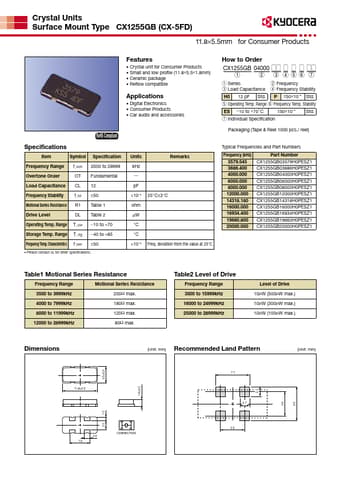

Preview of CX1255GB PDF

Datasheet Details

Part number
CX1255GB
Manufacturer
Kyocera
File Size
73.21 KB
Datasheet
CX1255GB-Kyocera.pdf
Description
Crystal Units
