USB0001RP, USB0005DP, (USB000x) Multilayer Ceramic Transient Voltage Suppressors

Multilayer Ceramic Transient Voltage Suppressors (USB Series) USB Series are designed to protect the high speed data lines against ESD transients.Th.

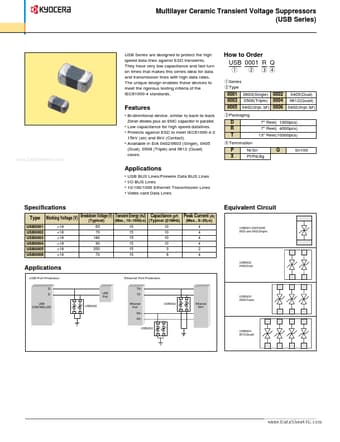

datasheet Preview Page 1 from Datasheet4u.com

USB0005DP_Kyocera.pdf

USB0001RP Datasheet Preview — This datasheet PDF includes multiple part numbers: USB0001RP, USB0005DP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

USB0001RP, USB0005DP

Manufacturer:

Kyocera

File Size:

64.75 KB

Description:

(USB000x) Multilayer Ceramic Transient Voltage Suppressors

Note:

This datasheet PDF includes multiple part numbers: USB0001RP, USB0005DP.
Please refer to the document for exact specifications by model.

Features

* Bi-directional device, similar to back-to-back Zener diodes plus an EMC capacitor in parallel.
* Low capacitance for high speed datalines.
* Protects against ESD to meet IEC61000-4-2 15kV (air) and 8kV (Contact).
* Available in EIA 0402/0603 (Single), 0405 (Dual), 0

Applications

* USB BUS Lines/Firewire Data BUS Lines
* I/O BUS Lines
* 10/100/1000 Ethernet Transmission Lines
* Video card Data Lines Specifications Type USB0001 USB0002 USB0003 USB0004 USB0005 USB0006 Equivalent Circuit 65 70 180 90 250 70 15 15 15 15 15 15 10 10 10 10 3 6 4 4
