LCDT28169274501 - LCD

The LCDT28169274501 by LCD TECHNOLOGY is a LCD. Below is the official datasheet preview.

Datasheet Details

Part number	LCDT28169274501
Manufacturer	LCD TECHNOLOGY
File Size	1.90 MB
Description	LCD
Datasheet	LCDT28169274501-LCDTECHNOLOGY.pdf
Additional preview pages of the LCDT28169274501 datasheet.

LCDT28169274501 Product details

Description

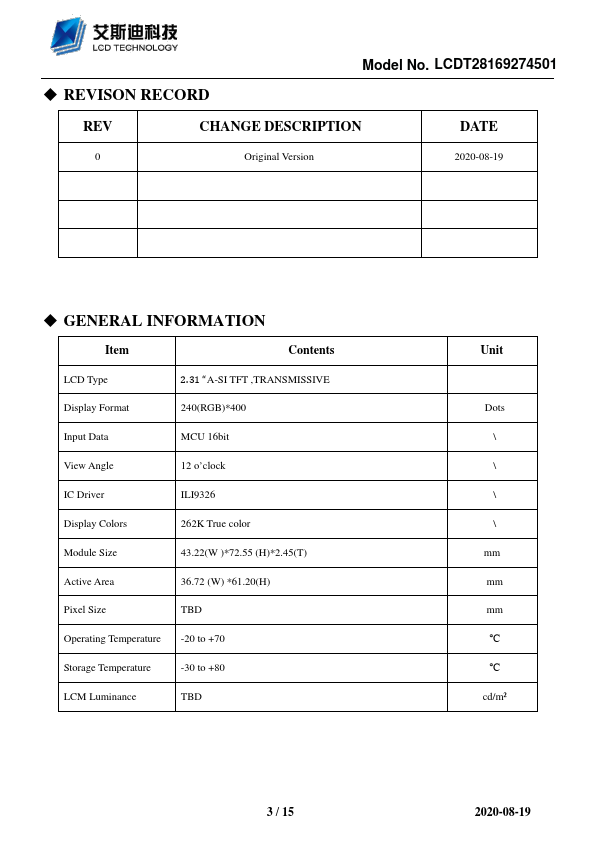

DATE 0 Original Version 2020-08-19 GENERAL INFORMATION Item Contents LCD Type 2.31 “A-SI TFT ,TRANSMISSIVE Display Format 240(RGB) 400 Input Data MCU 16bit View Angle 12 o’clock IC Driver ILI9326 Display Colors 262K True color Module Size 43.22(W ) 72.55 (H) 2.45(T) Active Area 36.72 (W) 61.20(H) Pixel Size TBD Operating Temperature -20 to +70 Storage Temperature -30 to +80 LCM Luminance TBD 3 / 15 Unit Dots mm mm mm ℃ ℃ cd/m² 2020-08-19
