AP100-B10 Datasheet - LEM

AP100-B10 AC Current transducer

AC Current transducer AP-B10 Split core transducer for the electronic measurement AC waveforms current, with galvanic isolation between the primary (High power) and the secondary circuits (Electronic circuit). Switch selectable ranges and RMS 0-5V and 0-10V switch selectable voltage output. IPN = 10 .. 400 A Preliminary Electrical data Primary Nominal Current IPN (A.t.RMS) 10,25,50 50,75,100 100,150,200 200,300,400 RL VC Vd Analogue Output Signal VOUT (V) 0-5V or 0-10V 0-5V or 0-10V 0-5V or 0-.

AP100-B10 Features

* RMS output

* Split core type

* 5V & 10V switch selectable voltage output.

* DIN mounting & Panel mounting

* Eliminates insertion loss

* Switch selectable ranges AP 50 B10 AP 100 B10 AP 200 B10 AP 400 B10 ≥ 10 kΩ +24 ±5% V DC 5 kV 18 V Load resistan

AP100-B10 Datasheet (56.39 KB)

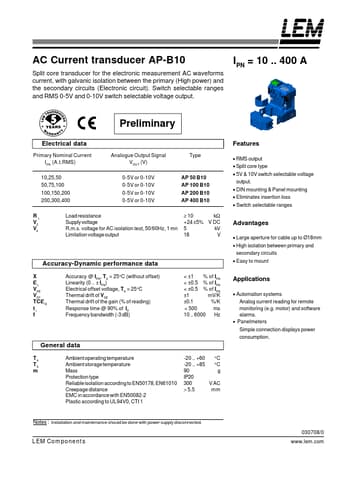

AP100-B10 Datasheet Preview — Preview of AP100-B10 PDF

Datasheet Details

Part number:

AP100-B10

Manufacturer:

LEM

File Size:

56.39 KB

Description:

Ac current transducer.
