CT1-T Current Transducer

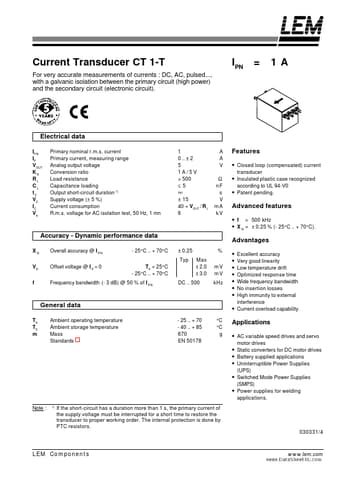

Current Transducer CT 1-T For very accurate measurements of currents : DC, AC, pulsed, with a galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit). IPN = 1 A Electrical data IP N IP VOUT KN RL CL tC VC IC Vd Primary nominal r.m.s. current Primary current, measuring range Analog output voltage Conversion ratio Load resistance Capacitance loading Output short-circuit duration 1) Supply voltage (± 5 %) Current consumption R.m.s. voltage for .

CT1-T Features

* Closed loop (compensated) current transducer

* Insulated plastic case recognized according to UL 94-V0 ∞

* Patent pending. ± 15 40 + VOUT / R L 6 Advanced features

* f = 500 kHz

* X G = ± 0.25 % (- 25°C .. + 70°C). Accuracy - Dynamic performance data X
