DF-C10 - DC Current transducer DF-C10

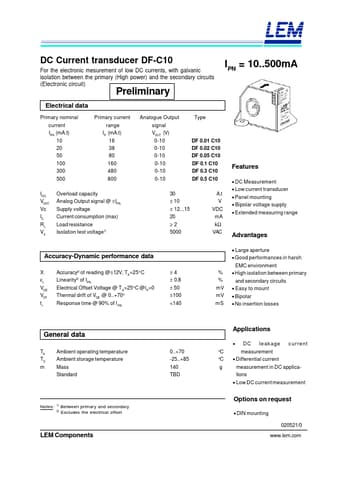

DC Current transducer DF-C10 For the electronic mesurement of low DC currents, with galvanic isolation between the primary (High power) and the secondary circuits (Electronic circuit) IPN = 10..500mA Preliminary Electrical data Primary nominal current IPN (mA.t) 10 20 50 100 300 500 IO C VOUT Vc IC RL Vd Primary current range IP (mA.t) 16 38 80 160 480 800 Analogue Output signal VOUT (V) 0-10 0-10 0-10 0-10 0-10 0-10 30 ± 10 ± 1215 20 ≥2 5000 Type DF 0.01 C10 DF 0.02 C10 DF 0.05 C10 DF 0.1 C1

DF-C10 Features

* DC Measurement

* Low current transducer

* Panel mounting

* Bipolar voltage supply

* Extended measuring range Overload capacity Analog Output signal @ ± IPN Supply voltage Current consumption (max) Load resistance Isolation test voltage1) Advantages
