FHSAH600 Datasheet - LEM

FHSAH600 Integrated Current Sensor

1 Uref Reference voltage 2 Uout Output voltage 3 GND Ground terminal 4 UC Supply voltage 5 NC Not connected or GND 6 7 8 Polarity OCDE OCDI UE OCD External OCD Internal OCD External OCD threshold voltRaEgreef terminal RE B Uout * Uref is positive following the direction of.

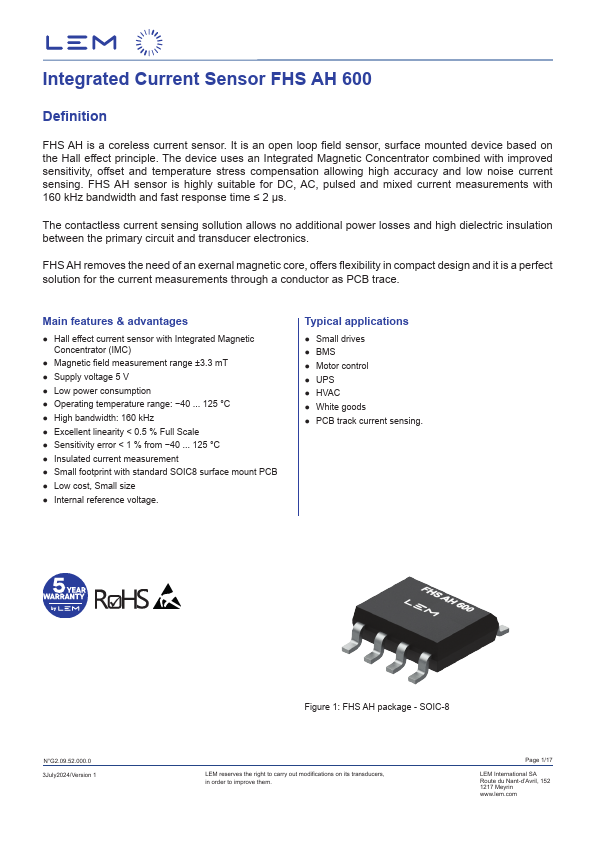

Integrated Current Sensor FHS AH 600 Definition FHS AH is a coreless current sensor. It is an open loop field sensor, surface mounted device based on the Hall effect principle. The device uses an Integrated Magnetic Concentrator combined with improved sensitivity, offset and temperature stress compensation allowing high accuracy and low noise current sensing. FHS AH sensor is highly suitable for DC, AC, pulsed and mixed current measurements with 160 kHz bandwidth and fast response time ≤ 2 µs. T.

FHSAH600 Features

* & advantages

* Hall effect current sensor with Integrated Magnetic Concentrator (IMC)

* Magnetic field measurement range ±3.3 mT

* Supply voltage 5 V

* Low power consumption

* Operating temperature range:

* 40 125 °C

* High bandwidth: 160 kHz

* Excellent linearity

FHSAH600 Datasheet (2.49 MB)

FHSAH600 Datasheet Preview — Preview of FHSAH600 PDF

Datasheet Details

Part number:

FHSAH600

Manufacturer:

LEM

File Size:

2.49 MB

Description:

Integrated current sensor.
