HAR1000-S Current Transducer HAR 1000-S

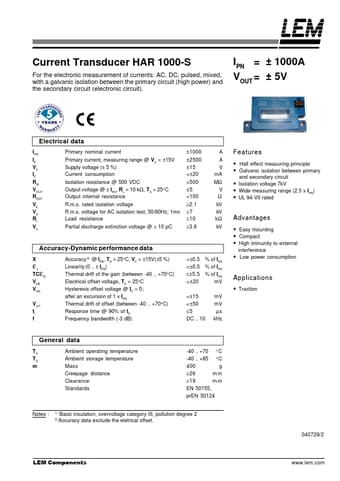

Current Transducer HAR 1000-S For the electronic measurement of currents: AC, DC, pulsed, mixed, with a galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit). IPN = ± 1000A VOUT = ± 5V Electrical data IPN IP VC IC RIS VOUT ROUT Vb Vd RL Ve Primary nominal current Primary current, measuring range @ VC = ±15V Supply voltage (± 5 %) Current consumption Isolation resistance @ 500 VDC Output voltage @ ± IPN, RL = 10 kΩ, TA = 25°C Output internal .

HAR1000-S Features

* Hall effect measuring principle

* Galvanic isolation between primary

* Isolation voltage 7kV

* Wide measuring range (2.5 x IPN)

* UL 94-V0 rated and secondary circuit Advantages

* Easy mounting

* Compact

* High immunity to external i

HAR1000-S Datasheet (270.53 KB)

HAR1000-S Datasheet Preview — Preview of HAR1000-S PDF

Datasheet Details

Part number:

HAR1000-S

Manufacturer:

LEM

File Size:

270.53 KB

Description:

Current transducer har 1000-s.
