Current Transducers HAX 500 to 2500-S For the electronic measurement of currents: DC, AC, pulsed, mixed, with a galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit). IPN = 500 .. 2500 A ±4V VOUT = Electrical data Primary nominal r.m.s. current IPN (A) 500 850 1000 1200 1500 2000 2500 Primary current measuring range IP (A) ± ± ± ± ± ± ± 1500 2550 3000 3600 4500 5500 5500 Type HAX HAX HAX HAX HAX HAX HAX 500-S 850-S 1000-S 1200-S 1500-S 2.

HAX1500-S Features

* Hall effect measuring principle

* Galvanic isolation between primary

* Isolation voltage 5000 V~

* Low power consumption

* Extended measuring range (3 x IPN)

* Package in PBT meets UL 94-V0 and secondary circuit VC IC IOC Vd Vb RIS VOUT ROUT RL Sup

HAX1500-S Datasheet (140.13 KB)

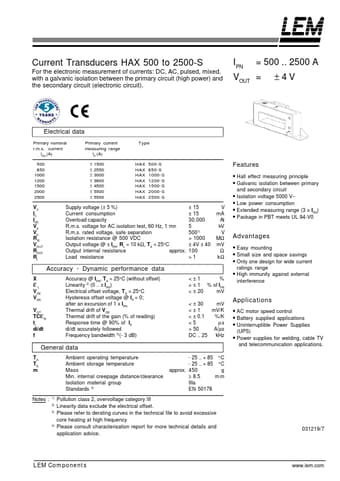

HAX1500-S Datasheet Preview — Preview of HAX1500-S PDF
