LTSR6-NP Current Transducer

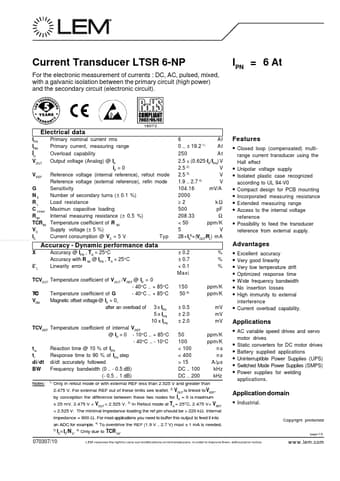

Current Transducer LTSR 6-NP For the electronic measurement of currents : DC, AC, pulsed, mixed, with a galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit). IPN = 6 At 16073 Electrical data IPN IPM ÎP VOUT VREF G NS RL C Lmaxi R IM TCR IM VC IC X Primary nominal current rms Primary current, measuring range Overload capability Output voltage (Analog) @ IP IP = 0 Reference voltage (internal reference), refout mode Reference voltage (externa.

LTSR6-NP Features

* Closed loop (compensated) multi

* range current transducer using the Hall effect Unipolar voltage supply Isolated plastic case recognized according to UL 94-V0 Compact design for PCB mounting Incorporated measuring resistan

LTSR6-NP Datasheet (170.56 KB)
