* Closed loop multi-range current transducer
* Voltage output
* Unipolar supply voltage
* Compact design for PCB mounting. Advantages
* Very low offset drift
* Very good du/dt immunity
* LTSR footprint compatible
* Reference pin with two modes: Ref IN and Ref OUT
LXSR15-NPS Datasheet (1.75 MB)
LXSR15-NPS
LEM
1.75 MB
Current transducer.

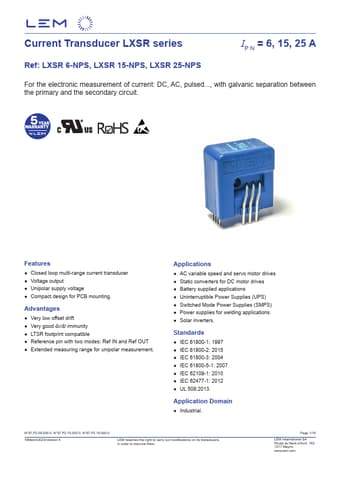

Current Transducer LXSR series
Ref: LXSR 6-NPS, LXSR 15-NPS, LXSR 25-NPS
IP N = 6, 15, 25 A
For the electronic measurement of current: DC, AC, pul.
