L90CSDC24V

PCB Relay

L90CSDC24V Datasheet (79.32 KB)

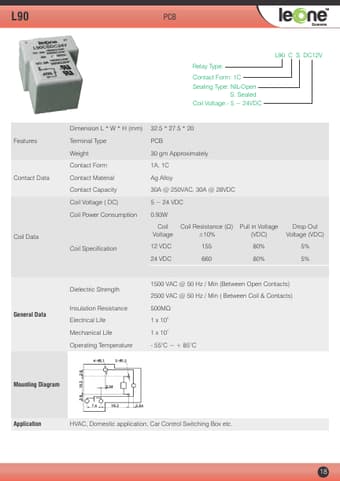

Preview of L90CSDC24V PDF

Datasheet Details

Part number:

L90CSDC24V

Manufacturer:

LEONE

File Size:

79.32 KB

Description:

Pcb relay.
L90 PCB L90 C S DC12V Relay Type: Contact Form: 1C Sealing Type: NIL-Open S: Sealed Coil Voltage:- 5 ~ 24VDC Dimension L
* W
* H (mm) Featu.

L90CSDC24V Features

* Terminal Type Weight Contact Form Contact Data Contact Material Contact Capacity Coil Voltage ( DC) Coil Power Consumption 32.5

* 27.5

* 20 PCB 30 gm Approximately 1A, 1C Ag Alloy 30A @ 250VAC, 30A @ 28VDC 5 ~ 24 VDC 0.93W Coil Voltage Coil Resistance (Ω) ±10% 155 660 Pull in Voltage (VDC)
