L91CSDC24V, L91CSDC12V Datasheet - LEONE

L91CSDC24V, L91CSDC12V, PCB Relay

L91 PCB L91 C S DC12V Relay Type: Contact Form: 1C Sealing Type: NIL-Open S: Sealed Coil Voltage:- 5 ~ 24VDC Dimension L * W * H (mm) Featu.

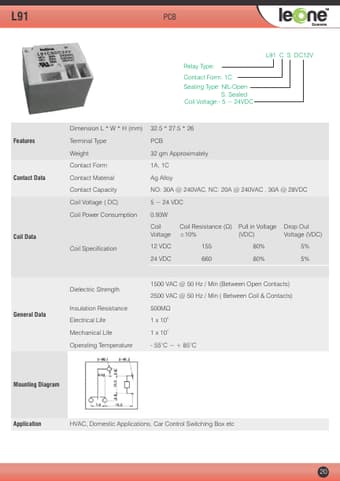

datasheet Preview Page 1 from Datasheet4u.com

L91CSDC12V-LEONE.pdf

L91CSDC24V Datasheet Preview — This datasheet PDF includes multiple part numbers: L91CSDC24V, L91CSDC12V. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

L91CSDC24V, L91CSDC12V

Manufacturer:

LEONE

File Size:

77.07 KB

Description:

PCB Relay

Note:

This datasheet PDF includes multiple part numbers: L91CSDC24V, L91CSDC12V.
Please refer to the document for exact specifications by model.

Features

* Terminal Type Weight Contact Form Contact Data Contact Material Contact Capacity Coil Voltage ( DC) Coil Power Consumption 32.5
* 27.5
* 26 PCB 32 gm Approximately 1A, 1C Ag Alloy NO: 30A @ 240VAC, NC: 20A @ 240VAC , 30A @ 28VDC 5 ~ 24 VDC 0.93W Coil Voltage Coil Resistance (Ω) Pull in Volt

Applications

* Car Control Switching Box etc 20
