LK2PNDC12V Datasheet - LEONE

LK2PNDC12V PANEL MOUNTING RELAY

LK2PN / LK3PN PANEL MOUNTING LK 2PN DC12V Relay Type: Contact Form: 2(2C) 3(3C) Coil Voltage:- 6 ~ 110VDC 6 ~ 240VAC Contact Form/Material 2C, 3C / Ag Alloy 100mΩ @1A, 6 VDC 10A 250VAC / 30VDC 500MΩ, ( 500VDC ) 1000VAC (Between Open Contact) / 1500VAC (Between Coil & Contact) Contact Rating Contact Resistance Contact Capacity Insulation Resistance Technical Specification Dielectric Strength Operate & Release Time, Terminal Type 25ms, 25ms, Electron Tube Pin 1.5W, 2.5VA 6,12,24.

LK2PNDC12V Datasheet (92.08 KB)

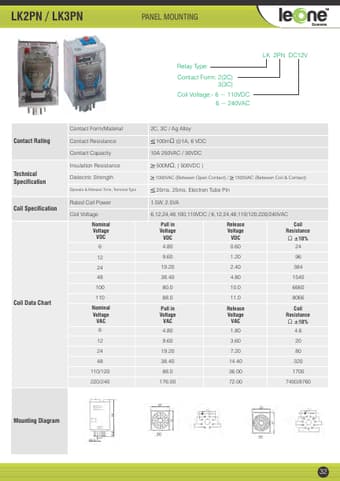

LK2PNDC12V Datasheet Preview — Preview of LK2PNDC12V PDF

Datasheet Details

Part number:

LK2PNDC12V

Manufacturer:

LEONE

File Size:

92.08 KB

Description:

Panel mounting relay.
