LK3PNAC24V, LK3PNDC12V Datasheet - LEONE

LK3PNAC24V PANEL MOUNTING RELAY

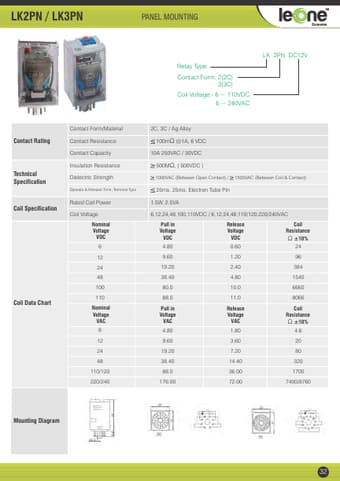

LK2PN / LK3PN PANEL MOUNTING LK 2PN DC12V Relay Type: Contact Form: 2(2C) 3(3C) Coil Voltage:- 6 ~ 110VDC 6 ~ 240VAC Contact Form/Material 2C, 3C / Ag Alloy   100mΩ @1A, 6 VDC 10A 250VAC / 30VDC   500MΩ, ( 500VDC )   1000VAC (Between Open Contact) /   1500VAC (Between Coil & Contact) Contact Rating Contact Resistance Contact Capacity Insulation Resistance Technical Specification Dielectric Strength Operate & Release Time, Terminal Type   25ms, 25ms, Electron Tube Pin 1.5W, 2.5VA 6,12,24.

LK3PNDC12V-LEONE.pdf

This datasheet PDF includes multiple part numbers: LK3PNAC24V, LK3PNDC12V. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LK3PNAC24V, LK3PNDC12V

Manufacturer:

LEONE

File Size:

92.08 KB

Description:

Panel mounting relay.

Note:

This datasheet PDF includes multiple part numbers: LK3PNAC24V, LK3PNDC12V.
Please refer to the document for exact specifications by model.
