SC10-S-DC24V

The SC10-S-DC24V is PCB Relay designed by LEONE.

Product Overview

LEONE

Part number	SC10-S-DC24V, SC10-S-DC12V
Manufacturer	LEONE
File Size	93.89 KB
Description	PCB Relay
Datasheet	SC10-S-DC12V-LEONE.pdf
Note	This datasheet PDF includes multiple part numbers: SC10-S-DC24V, SC10-S-DC12V. Please refer to the document for exact specifications by model.

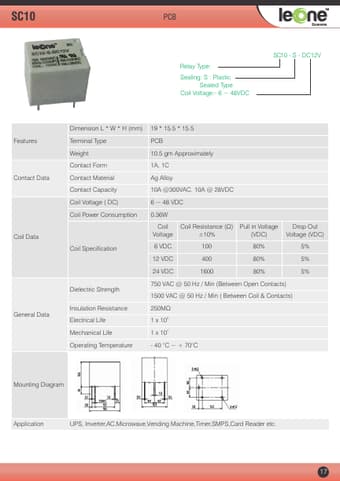

Additional preview pages of the SC10-S-DC24V datasheet.

Terminal Type Weight Contact Form Contact Data Contact Material Contact Capacity Coil Voltage ( DC) Coil Power Consumption 19.
15.5.
15.5 PCB 10.5 gm Approximately 1A, 1C Ag Alloy 10A @300VAC, 10A @ 28VDC 6 ~ 48 VDC 0.36W Coil Voltage Coil Resistance (Ω) ±10% 100 400 1600 Pull in Voltage (VDC) 80% 80% 80% Drop Out Voltage (VDC) 5% 5% 5% Coil Data Coil Specification 6 VDC 12 VDC 24 VDC Dielectric Strength Insulation Resistance Electrical Life Mechanical Life Operating Temperature 7.
