KMN1072KX5F - 20V N-Channel Enhancement Mode MOSFET

KMN1072KX5F Datasheet Preview — Preview of KMN1072KX5F PDF

Datasheet Details

Part number	KMN1072KX5F
Manufacturer	LFC semi
File Size	512.12 KB
Description	20V N-Channel Enhancement Mode MOSFET
Datasheet	KMN1072KX5F-LFCsemi.pdf

KMN1072KX5F Product details

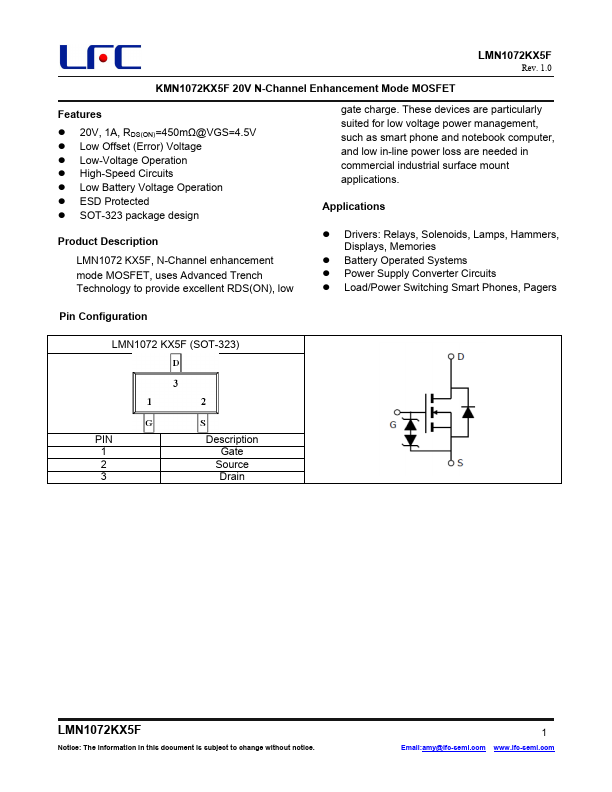

Description

LMN1072 KX5F, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge.These devices are particularly suited for low voltage power management, such as smart phone and notebook computer, and low in-line power loss are needed in commercial industrial surface mount applications.Applications Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories Battery Operated Systems Power Supply Converter Circuits Load/Pow

Features

20V, 1A, RDS(ON)=450mΩ@VGS=4.5V.
Low Offset (Error) Voltage.
Low-Voltage Operation.
High-Speed Circuits.
Low Battery Voltage Operation.
ESD Protected.
SOT-323 package design Product.
