LO101 Ultra-low Current 32.768kHz For RTC Reference Clock

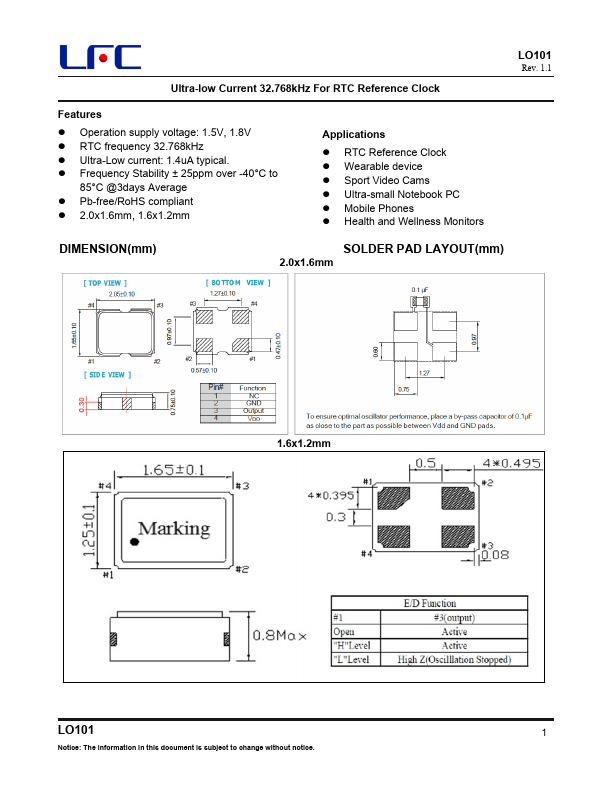

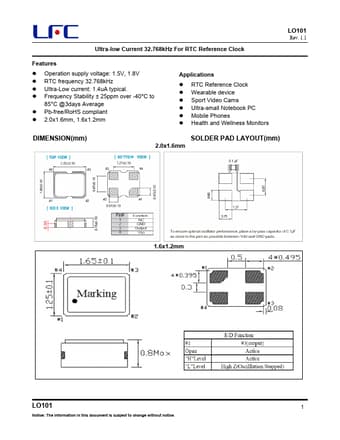

📥 Download Datasheet  Datasheet Preview Page 1

Description

Ultra-low Current 32.768kHz For RTC Reference Clock LO101 Rev.1.1 .

📥 Download Datasheet

Preview of LO101 PDF

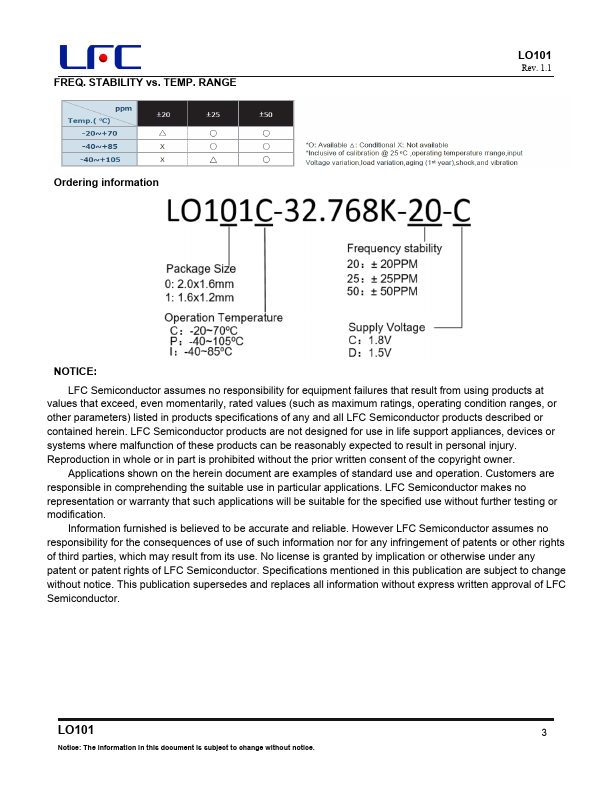

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LO101
Manufacturer
LFC semi
File Size
396.46 KB
Datasheet
LO101-LFCsemi.pdf
Description
Ultra-low Current 32.768kHz For RTC Reference Clock

Features

* Operation supply voltage: 1.5V, 1.8V
* RTC frequency 32.768kHz
* Ultra-Low current: 1.4uA typical.
* Frequency Stability ± 25ppm over -40°C to 85°C @3days Average
* Pb-free/RoHS compliant

Applications

* RTC Reference Clock
* Wearable device
* Sport Video Cams
* Ultra-small Notebook PC
* Mobile Phones
* Health and Wellness Monitors DIMENSION(mm) SOLDER PAD LAYOUT(mm) 2.0x1.6mm 1.6x1.2mm LO101 1 Notice: The information in this document is subject to change without noti
