LO205

The LO205 is Ultra Low Power EMI Reduction Oscillator designed by LFC semi.

Product Overview

📥 Download Datasheet

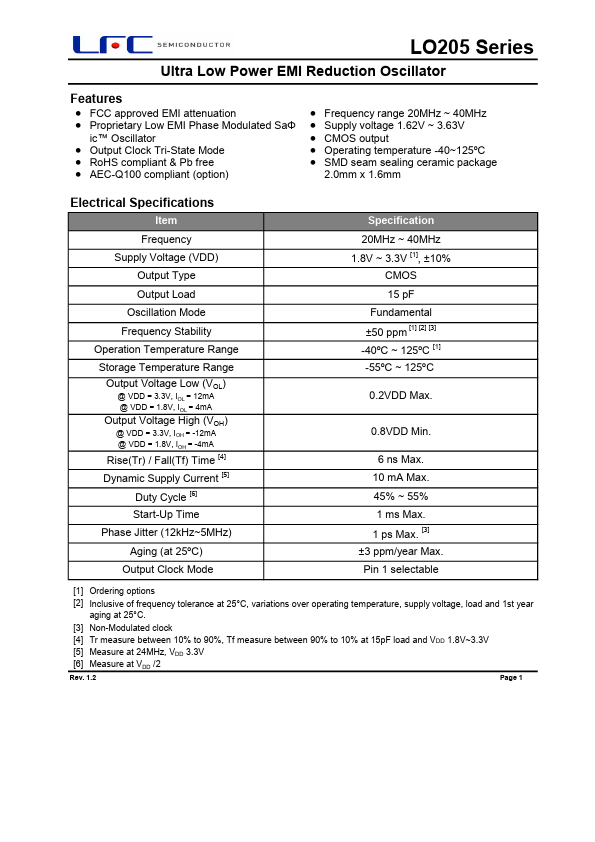

LO205 Ultra Low Power EMI Reduction Oscillator by LFC semi - Datasheet Preview — Datasheet preview – LO205

Datasheet Details

Part number	LO205
Manufacturer	LFC semi
File Size	284.33 KB
Description	Ultra Low Power EMI Reduction Oscillator
Datasheet	LO205-LFCsemi.pdf

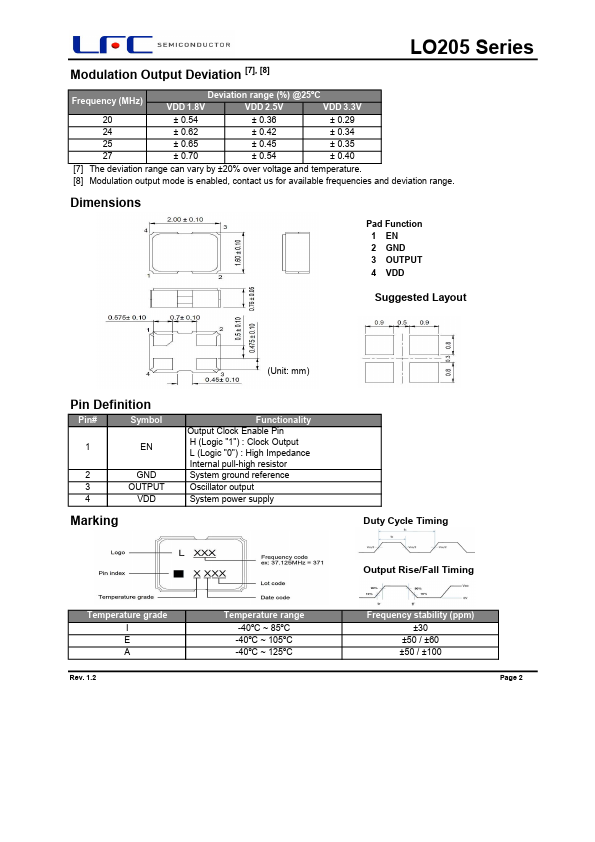

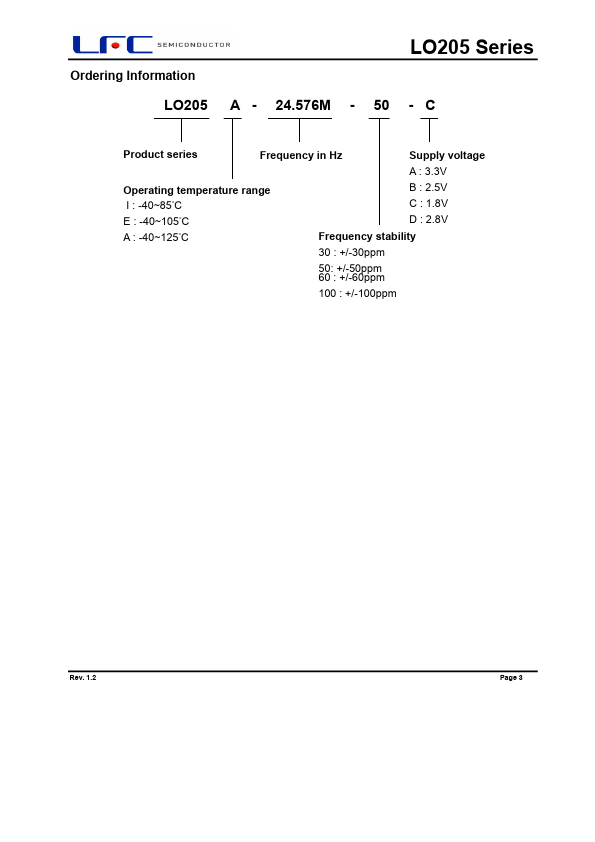

Additional preview pages of the LO205 datasheet.

Product details

Features

FCC approved EMI attenuation.
Proprietary Low EMI Phase Modulated SaΦ ic™ Oscillator.
Output Clock Tri-State Mode.
RoHS compliant & Pb free.
AEC-Q100 compliant (option).
Frequency range 20MHz ~ 40MHz.
Supply voltage 1.62V ~ 3.63V.
CMOS output.
Operating temperature -40~125ºC.
SMD seam sealing ceramic package 2.0mm x 1.6mm Electrical Specifications Item Frequency Supply Voltage (VDD) Output Type Output Load Oscillation Mode Frequency Stability.
